Sibo занимается потенциометрами и датчиками уже 30 лет.

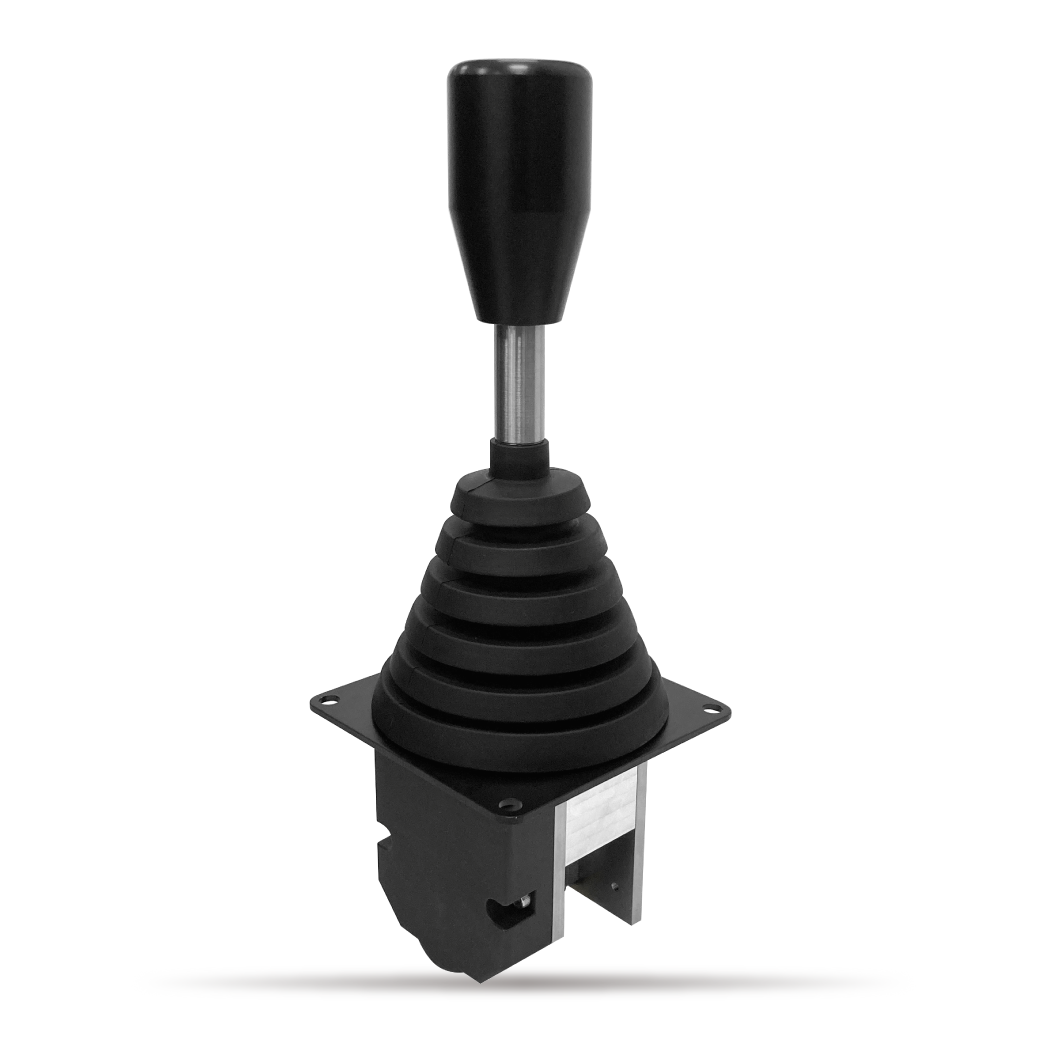

JP50A
JP50A

JP50A

Potentiometer-type Joysticks

瀏覽量: Вернуться: 2024-06-07

    Характеристики:

  • Medium-sized joystick, potentiometer is made in Japan

  • High-impact 1-dimensional coordinate type

  • Customized function is available

  • Available for combination with modules to realize Bus output

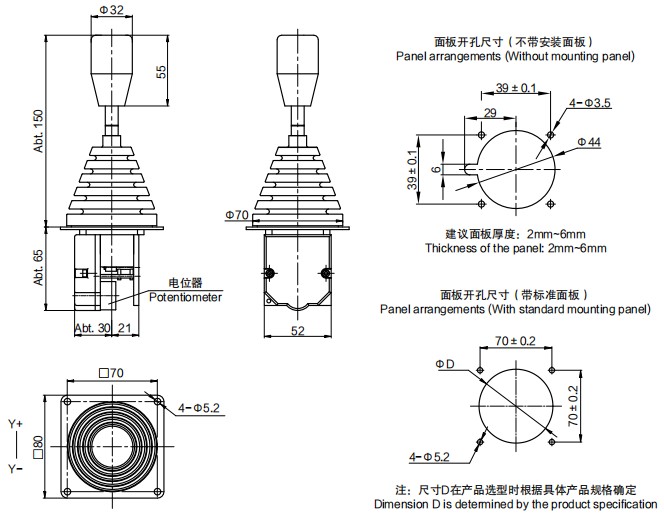

Измерение


Параметр

General Specifications

Operating angle

Approx. ±32°

Operating force

Without spring return device:Approx. 7~9N, With spring return device:Approx. 9~18N

Life expectancy

Approx. 5,000,000

Operating temperature

-40℃~+85℃

Storage temperature

-40℃~+85℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx. 580g

Protection degree

IP65 (Above panel)

Electrical Specifications (Potentiometer)

Standard resistance value

10K±15%

Independent linearity tolerance

±3%

Output smoothness

<Against input voltage 0.2%

Contact resistance variation

<5%CRV

Resolution

Essentially infinite

Power rating

0.2W

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Center tap angle

Approx. 3º (±1.5º)

Repeatability of tolerance (no center tap)

Approx. ±2%

Wiper current

10μA ~1mA (Max. 1mA)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch

Rating

48V.D.C. / 0.1A

Electrical life expectancy

1,000,000

Mechanical life expectancy

-

Insulation resistance

>1000MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.)

Models of Products with Signal Converters / Output Signals(For more general electrical specifications, please check our catalog.)

4803P-V2

-10~10V voltage output

S4803P-V2

0~10V V-type voltage output

S4803P-I1

4~20mA current output

S4803P-CAN

CANOPEN

S4803P-RS485

RS485

Special Specifications Available

Other output signals

USB signal, wireless remote control, digital signal output, dual signal output etc.

Switch signals

Switch signals

Special knob

Special lever length, customized knob, with push button switch (with light is optional)

Other mechanical specifications

Special operating force, mid position self-locking function, with spring return device for single side
