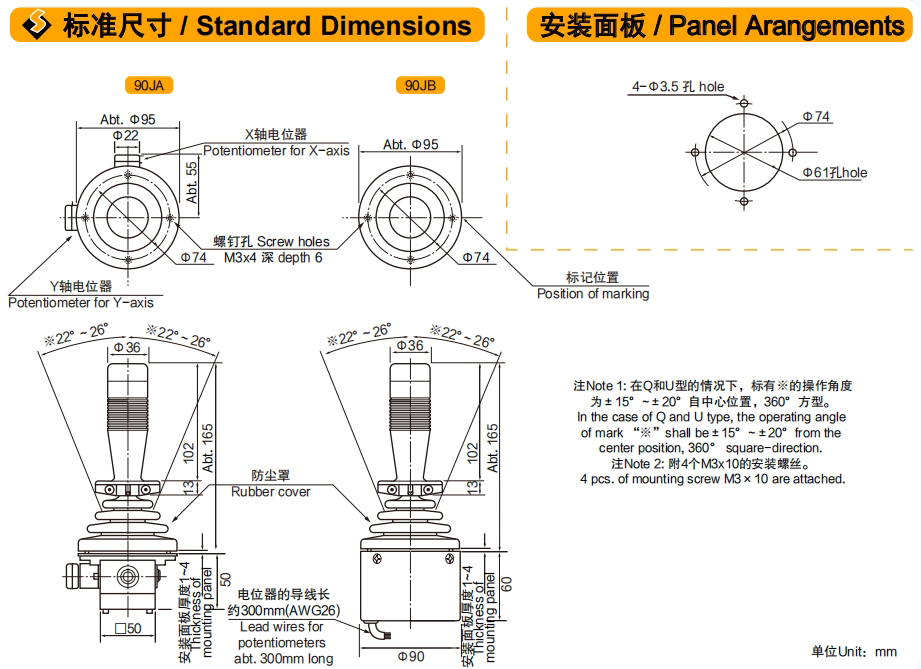

Controlling range of operating lever

2-dimensional coordinate type : Approx. ±22°～±26° omni-direction from center position. 3-dimensional coordinate type : Approx. ±45°～±50°operation from center position of knob in addition to the operating range of 2-dimensional coordinate type.

Operating force

Standard spring return device : Automatically return to center. X, Y directions : Approx. 2～12N(200～1,200gf) , Z direction : Approx. 20～85mN?m(200～850gf?cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/s2

Life expectancy

Approx. 5,000,000 operations

Mass

2-dimensional coordinate type : Approx. 650g, 3-dimensional coordinate type : Approx. 750g

Potentiometers mounted

SFCP22E, 10kΩ±15%, 0.2W, (conductive plastic resistive element), Independent linearity tolerance ±3%, Electrical rotating angle for X & Y axis : Approx. 44°. In case of 90JA and 90JB with 3-dimensional coordinate Z-axis potentiometer-inside-knob incorporated type, the following potentiometer is used: SFCP22AC, 10kΩ±15%, 0.3W, Independent linearity tolerance ±3%, Electrical rotating angle: Approx. 90°

Output smoothness

＜against input voltage 0.2%

Contact resistance variation

＜5%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.（500V.A.C）

Insulation resistance

＞1000MΩ（500V.D.C）
