Sibo занимается потенциометрами и датчиками уже 30 лет.

46HD
46HD

46HD

Multi-turn Wire-wound POT.

瀏覽量: Вернуться: 2023-01-09

    Характеристики:

  • Multi-turn (standard: 3-turn, 5-turn, 10-turn, 15-turn, 20-turn)

  • Wirewound

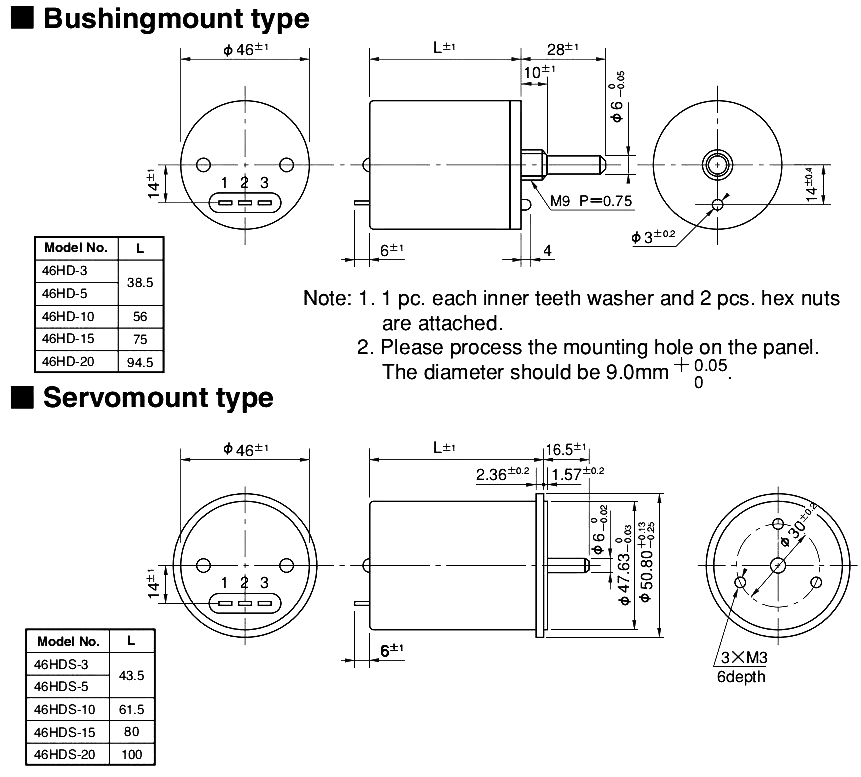

  • Bushingmount&Servomount

Измерение


Параметр

General Specifications

Standard Number Of Turns

10-turn

Standard Resistance Range

50Ω~100KΩ

Max. Practical Resistance Value

200KΩ

Total Resistance Tolerance

Standard Class ±3%(H) [±5% (J) in case of within 1kΩ ], precision Class ±1%(F) [in the pot. with a single-wire resistive element, the precision class should read ±2% (G)]

Independent Linearity Tolerance

Standard Class ±0.3%, Precision Class ±0.1%, (Within 5kΩ) (±0.15%)

Power Rating

5.0W

Noise

<100ΩE.N.R.

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<20mN•m(200gf•cm)(Bushingmount type)、<10mN•m(100gf•cm)(Servomount type)

Stopper Strength

Approx.0.9N•m(9kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.120g

Special Specifications Available

Special turns

30-turn type (S46HD-30)

Special shaft type

Special machining on the shaft, shaft with front and rear extension (in case of bushingmount type, rear shaft with 6mm dia. and 28mm length together with the bushing of M9x10mm and in case of servomount type, rear shaft with 6mm dia. and 15mm length), shaft dia. (φ 6.35mm) & bushing with inch dimension

Special housing case

Simple sealed housing

Special accessories

With limit-switches

Special model

Oil-filled type (OF46HD)

Special gangs

Multi-ganged (Available up 2 gangs)
