Sibo занимается потенциометрами и датчиками уже 30 лет.

JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A
JH22A

JH22A

Fingertip joystick

瀏覽量: Вернуться: 2022-09-15

    Характеристики:

  • Fingertip Joystick

  • Coloured cap

  • Available redundant output

  • Luminous effect is optional

Измерение


Параметр

General Specifications

Operating angle

Approx. ±30°(From center position)

Operating force

Approx. 2.5N~3N

Max. operating force

50N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature range

-20℃~+85℃

Storage temperature range

-20℃~+85℃

Mass

Approx. 20g

Protection grade

IP67 (Electrical parts)

Electrical Specifications

Input voltage

5V±10%

Output signal

0~100%Vcc

Operating current (no load)

<16mA(Single)

Load resistance

>100KΩ

Output deviation at both ends

<1%Vcc

Independent linearity tolerance

±2%

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

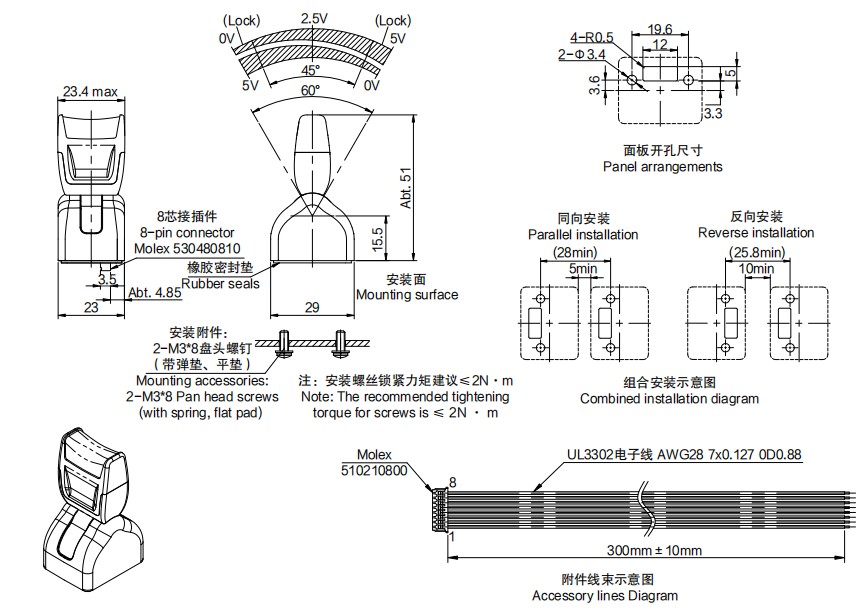

Terminal Connection Instructions

Color

Red,Black,White,Green,Green,Yellow,Black,Red

Title

VCC1,GND1,OUT1,Switch 1,Switch 2,OUT2,GND2,VCC2

Port

1,2,3,4,5,6,7,8

Special Specifications Available

Other output signals

PWM

Special knob

Special knob and motifs on the knob,Luminous effect

Other special specifications

With customer-specific connectors,With protection module
