Sibo занимается потенциометрами и датчиками уже 30 лет.

JH30
JH30

JH30

Magnetic-type Joysticks

瀏覽量: Вернуться: 2023-01-09

    Характеристики:

  • Hall effect joystick

  • Metal housing case & small-sized

  • Various output signals and output characteristics

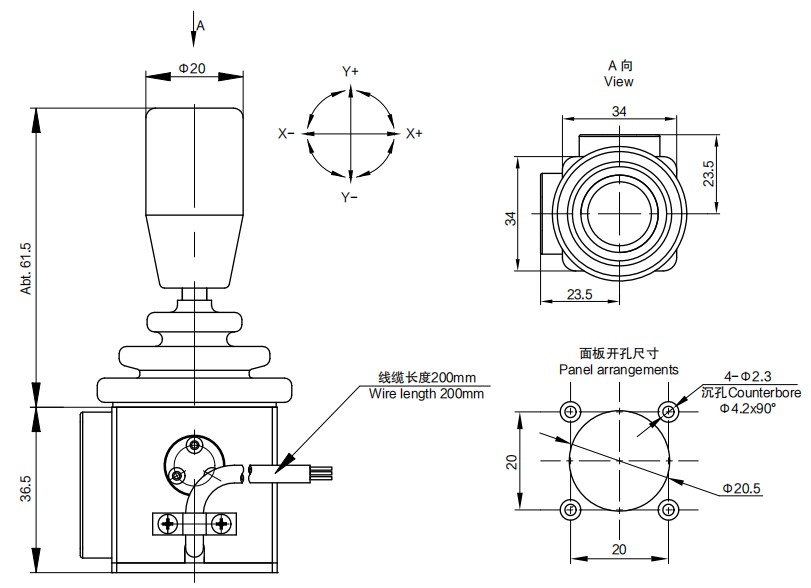

Измерение


Параметр

General Specifications

Operating angle

Approx. ±15°(From center position)

Operating force

Approx. 2.5N~6N

Max. operating force

100N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature range

-20℃~+65℃

Storage temperature range

-20℃~+65℃

Mass

Approx. 125g

Protection grade

IP65 (Above panel)

Electrical Specifications

Input voltage

5V±10%;15~30V ;15~30V

Output signal

0~100%Vcc;0~10V;4~20mA

Current consumption (no-load)

<16mA;<25mA;<35mA

Load resistance

>100KΩ;>100KΩ;<600Ω

Output deviation at both ends

<1%·VCC;<50mV;<0.1mA

Independent linearity tolerance

±2%

Resolution

4096 (12bit)

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Terminal Connection Instructions

Color

Red;Black;Green;White;Yellow

Title

VCC;GND;SW;X;Y

Special Specifications Available

Special analog signals

9~30V applied, 0~5V output;10V applied, 0~10V output;3.3V applied, 0~5V output;Dual analog signal and PWM

Other output signals

SSI, RS485, CANopen, USB, Modbus, wireless conmunication(LoRa), other digital signal, bus signal, etc.

Special knob

Customized knob, with push button switch (with light is optional), with other microswitches models, etc.

Other special specifications

With DEUTSCH connector (6pin);With control module
