Sibo занимается потенциометрами и датчиками уже 30 лет.

WDH22B
WDH22B
WDH22B
WDH22B

WDH22B

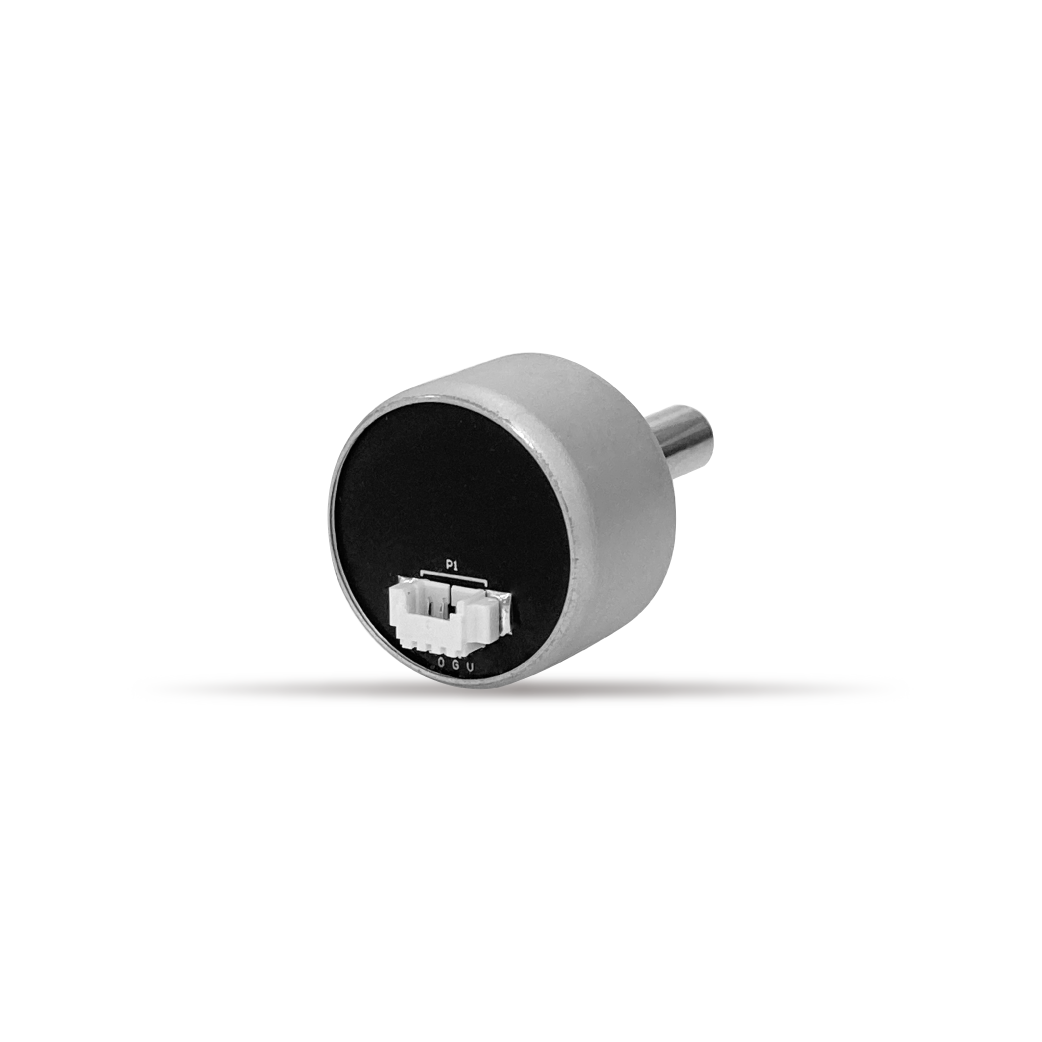

1-turn Contactless Magnetic POT.

瀏覽量: Вернуться: 2023-01-09

    Характеристики:

  • Magnetic rotary sensor

  • Economy version

  • With one couple of precision ball bearings

  • With solder terminals

  • Bushingmount

Измерение


Параметр

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP40

Operating torque

<2mN·m

Max.speed

1500rpm

Life expectancy

50,000,000

Mass

Approx.25g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃~+125℃

Storage temperature range

-30℃~+125℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

WDH22B 0505 W360

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Special Specifications Available

Other output signals

PWM

With connectors

With connectors
