Sibo занимается потенциометрами и датчиками уже 30 лет.

R40
R40

R40

1-turn Contactless Magnetic POT.

瀏覽量: Вернуться: 2023-01-09

    Характеристики:

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • With one couple of precision ball bearings

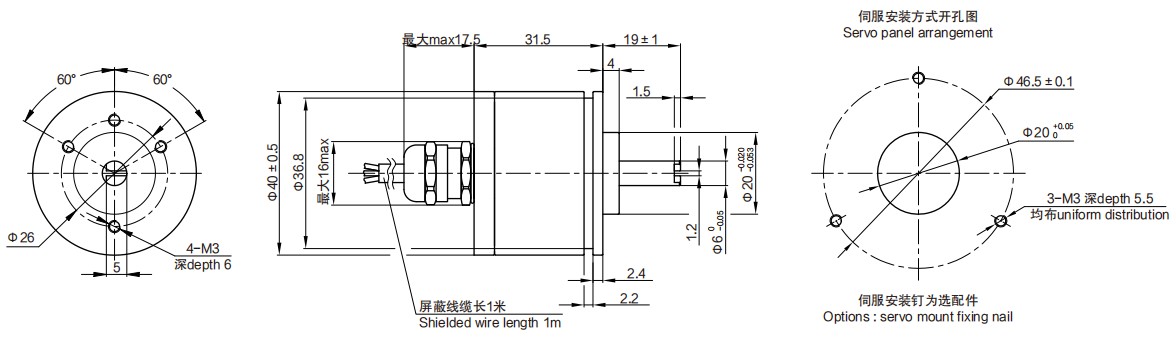

  • Servo&Screw mount

  • Multiple output signals

Измерение


Параметр

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP67

Operating torque

<1mN·m

Max.speed

6000rpm

Life expectancy

100,000,000

Mass

Approx.120g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃~+85℃

Storage temperature range

-40℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R40 0505 W360(For more input voltage/output signal such as 2410、2405、2442, please check our catalog.)

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

2442

15~30V / 4~20mA

Special Specifications Available

Other output signals

Available for incremental、PWM、SER、SSI、SPI signal.

Special input and output

Available for other input and output, such as 1010: 10V input, 0-10V output, 0305: 3.3V input, 0-5V output, etc.

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)

Special mechanical angle

With stopper (Rotating angle becomes 345°). Other rotating angle can be customized.

Special torque

Low torque <0.5mN·m or high torque <30mN·m.
