50JCK

Potentiometer-type Joysticks

瀏覽量： Tiempo: 2023-01-09

Características：

3-dimensional coordinate type joystick
Potentiometer outside-mounted type
With conductive plastic element
With spring return device
Multifunctional

Folleto

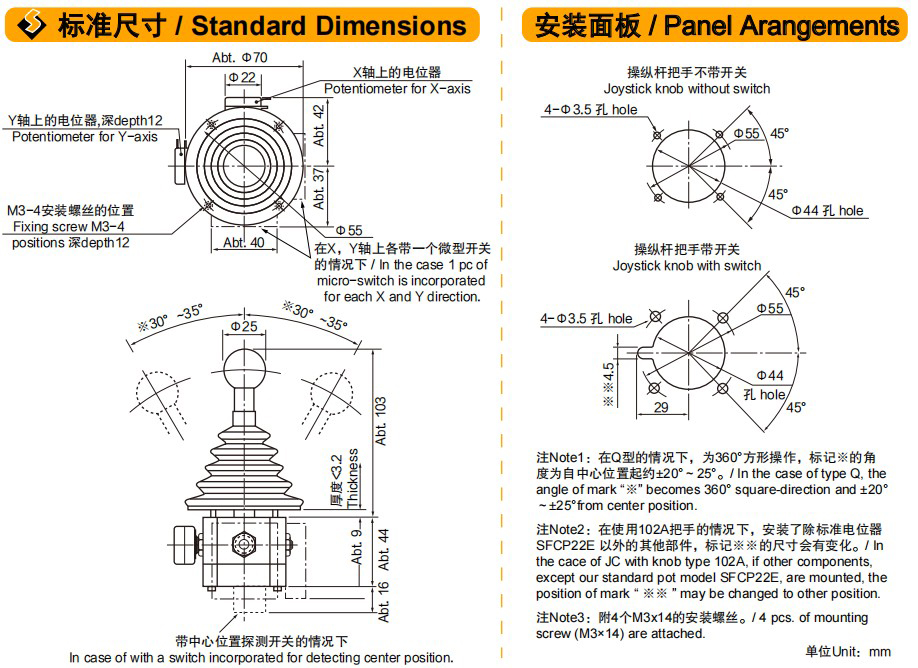

Dimensión


Parámetro

General Mechanical Specifications

Controlling range of operating lever

2-dimensional coordinate type : Omni-directionally approx. ±30°～±35° operation from center position.

Operating force

Standard spring return device : Automatically return to center (omni-directional type), Approx. 3～15N (300～ 1,500gf.)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx.5,000,000 operations

Mass

Approx.350g

General Electrical Specifications

Potentiometers mounted

SFCP22E 10kΩ±15%, 0.2W (conductive plastic resistive element) Independent linearity tolerance ±3%, Electrical rotating angle: Approx. 60°, All terminals can be fitted with the Tyco 110 series fasten receptacle (2.8 × 0.5mm) or equivalents.

Output smoothness

＜against input voltage 0.2%

Contact resistance variation

＜5%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

＞1000MΩ（500V.D.C）
