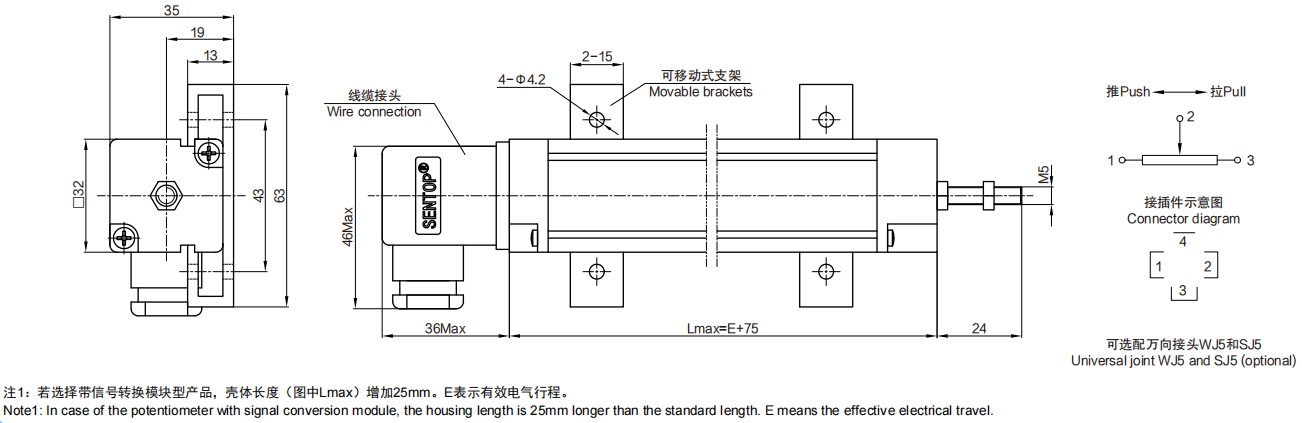

Mechanical stroke

E+8mm±2mm

Protection degree

IP40

Operating force

≤2.5N

Life expectancy

20,000,000

Mass

Approx.150g (50mm)；Approx.210g (100mm)；Approx. 270g (150mm)；The mass of products with different electrical strokes can refer to the calculation formula M=1.2×E+90g

Speed (m/s)

Max 1m/s

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Wiper material

Precious metal multi-finger wiper

Operating temperature range

-55℃～+125℃

Storage temperature range

-55℃～+125℃

Shock

50G，11ms，Half sine

Vibration

15G，10～2000Hz

Theoretical electrical stroke

25mm-400mm (increase every 25mm); 400mm-1000mm (increase every 50mm);

Actual electrical stroke

T=E±2mm

Standard resistance

1K,2K,5K,10K

Resistance tolerance

Standard±15%; Precision ±10%

Independent linearity tolerance

Standard±0.5%; Precision ±0.1%; S-Precision±0.05%

Max.power rating

0.04W/cm(70℃) 0W（125℃）

Wiper current

μA~1mA(2mA))

Repeatability of tolerance

≤0.01%

Load resistance

≥1000xRt

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

1000V.A.C RMS 50Hz

Electrical stroke

Same as potentiometer type

Rated input voltage

15～30V

Signal conversion module type

Current type I1、Voltage type V1、Voltage type V2

Output signal type

4~20mA（I1）、0~5V（V1）、0~10V（V2）

Load resistance

0~350Ω（I1）、≥5KΩ（V1、V2）

With spring return device

Spring return, the following strokes can realize the spring return outside-mounted:50mm（including 50mm）～275mm

Special electrical travel

Special electrical travel

Optional accessories

Universal Joint WJ5,SJ5
