Keywords：Various output types, Zero setting at any position, 'True absolute multi turns'
30 series multi-turn encoders is coming!
Customers who are familiar with encoders know that there are incremental encoders, absolute single-turn encoders and absolute multi-turn encoders. According to their own characteristics, they play their roles in various occasions.
Today, let's talk about the multi-turn encoders. The multi-turn encoders are widely used in various large-stroke or multi-turn measurement and positioning occasions. It greatly expands the measuring stroke in a limited space, making the measurement of large strokes and multi turns efficient and reliable.
At present, there are two main realization methods of multi-turn encoders. The one type adopts the mode of counter, and the other type adopts the mode of mechanical gear set. The former reflects the relative position of the products, rather than the absolute position. Therefore, some people in the industry call it "pseudo absolute multi-turn encoders". The latter is not user-friendly because of its large size and high cost.
Problems solved by 30 series multi-turn encoders
Aiming at the pain point of the market and the needs of customers, through innovative structure and algorithm design, SIBO has developed the new miniaturized and mechanical gear type absolute multi-turn encoders - "EAM30 & EMB30 series Absolute Multi-turn Encoders”. Their appearance solves the urgent needs of industries for small size, low cost and high reliability of the multi-turn encoders.
Advantages of 30 series multi turn encoders
①Small size - patented innovative structure and algorithm design, up to 120 turns of absolute multi-turn measurement can be realized in the space of 30mm×35mm×21mm.
②Solid housing - zinc alloy housing, solid and reliable, with unique anti-skid installation design on the bottom surface.
③Extremely high resolution and measurement accuracy - the resolution for single-turn encoders can reach 14bit (16384), the repetition accuracy is ± 1Lsb, and the linearity is ± 0.3%.
Personalized settings for 30 series multi-turn encoders
Various output types - analog signals, serial SSI signals, MODBUS RTU signals, etc.

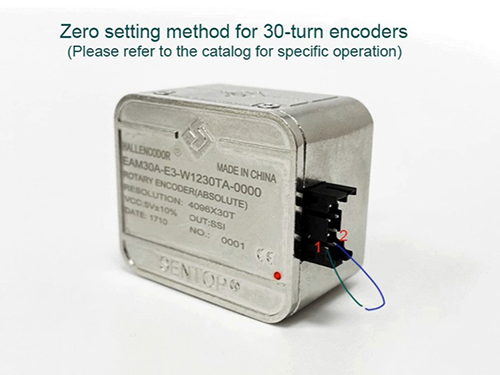

Humanized setting mode - with external zero setting interface, the zero position can be set at any position, and there is no need to find the zero point during installation, which is convenient for on-site installation and commissioning. Analog output products can also be set the zero position and full-scale position. (We will make a detailed introduction in the next issue. You can also call SIBO to obtain data sheet and operation information.)
In addition to the above features, EM30 series encoders also have reverse connection protection function and good electromagnetic shielding performance. They can work well in various vibration environments and complex electromagnetic environments. Welcome to consult us for your order.
