In recent years, Sibo has continuously made breakthroughs in scientific and technological innovation, and successfully launched the digital and bus signal multi-turn encoders, which has brought convenience and benefits to many industries. Let's introduce the characteristics of multi-turn encoder to you.

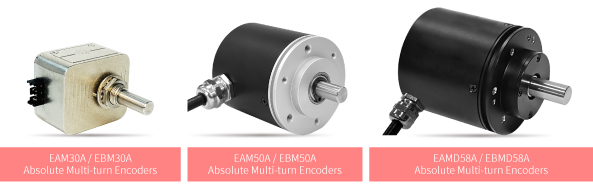

EAM30A/EBM30A

This is the smallest multi-turn encoders of Sibo, which uses the multi-turn encoder technology of absolute value gear group and magnetic sensing technology to realize the absolute multi-turn measurement of 60 turns. Its operating voltage is 3.3V~5V and 12V~30V, and its output signals are optional for SSI, RS485, and CAN. It also has flexible zero setting mode, reverse connection protection function, and good electromagnetic shielding performance.

EAM50A/EBM50A

This product with a diameter of 50mm adopts an aluminum alloy integrated flange and an aluminum alloy housing, which is sturdy and reliable, with a protection degree up to IP65. Its single-turn resolution can reach 14 bit (16384), the multi-turn resolution can reach 12 bit (4096 cycles), the repetition accuracy is ± 1 Lsb., and the linearity is ± 0.3%. It also supports a variety of output types and multiple interface types.

EAMD58A/EBMD58A

This product is heavy-duty, with a maximum number of 16384 turns (14bit). It has a high protection level, robust and reliable, suitable for harsh working environments. Its operating voltage is 9-30V wide voltage, and its output signals include SSI and RS485. It can also be customized according to customer requirements. It can also provide a variety of shaft diameter options, special machining of shafts, and blind hole shafts.
