Sibo has focused on potentiometers and sensors for 30 years.

CV6
CV6
CV6
CV6

CV6

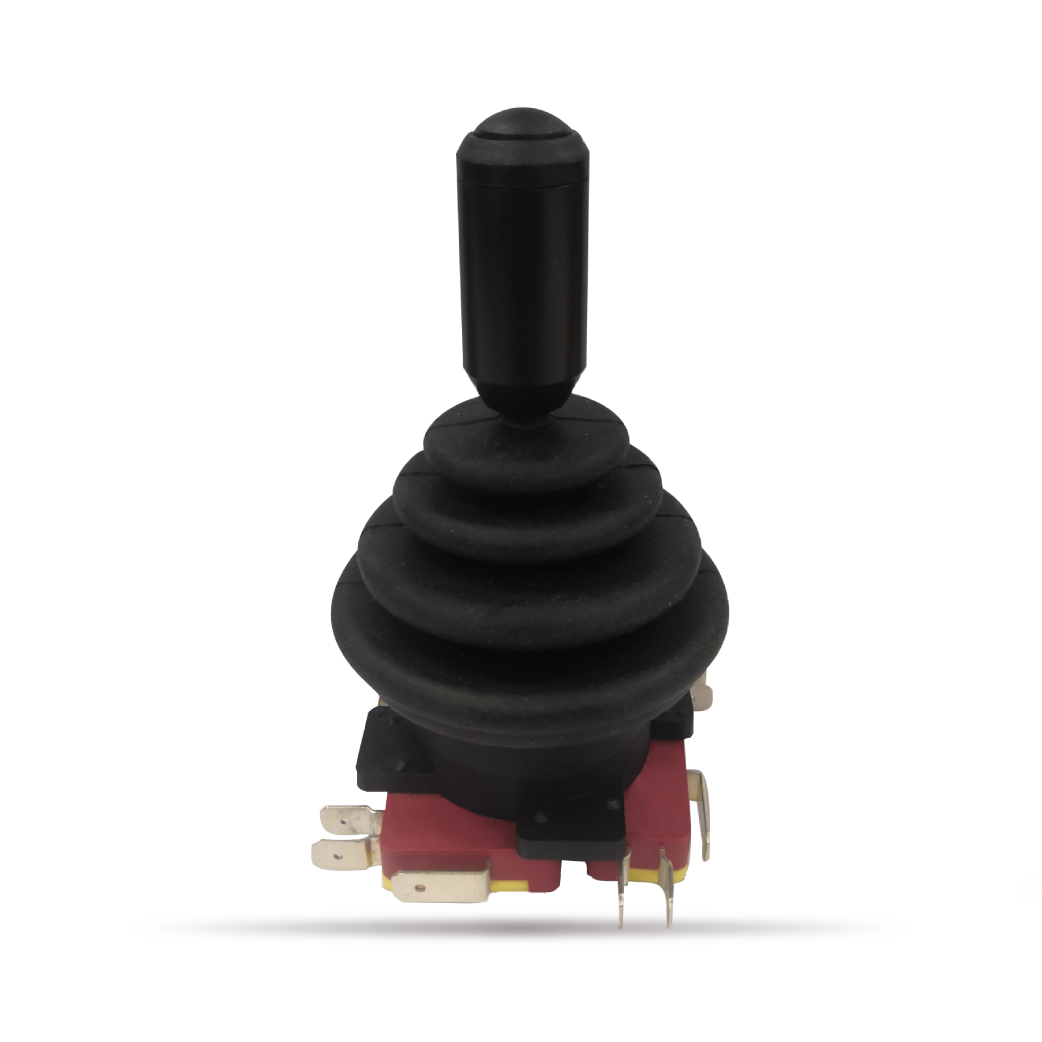

Switch-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Compact structure

  • Various specifications (switch signal joystick or analog signal joystick optional)

  • Firm body

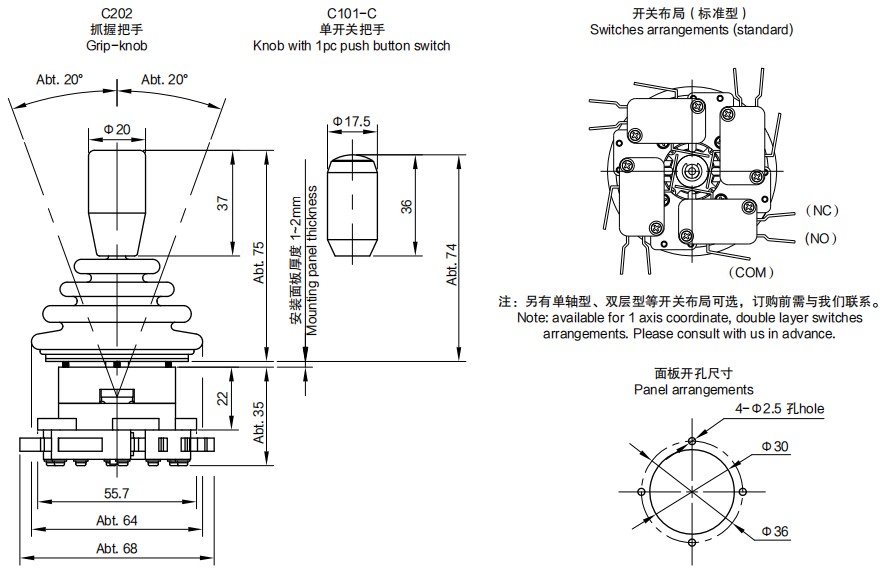

Dimension


Parameter

General Specifications

Operating angle

Approx. ±20º (From center position)

Operating force

Approx. 2.5N~3.5N

Maximum allowable force

100N

Mechanical life expectancy

Approx. 500,000

Operating temperature range

-20℃~+65℃

Storage conditions

-20℃~+65℃

Mass

Approx. 140g

Protection grade

IP65 (Above panel)

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch,Microswitch

Rating

48V.D.C. / 0.1A,250V.A.C. / 14(4)A

Electrical life expectancy

1,000,000,100,000

Mechanical life expectancy

- ,1,000,000

Insulation resistance

>1000MΩ (500V.D.C.),>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.),1min (1000V.A.C.)

Special Specifications Available

Other output signals

Analog signal

Special mechanical property

Speical mechanical property such as special lever height, special spring return force, etc.

Special knob

Customized knob, with push button switch (with light is optional), with other microswitches models, etc.
