Sibo has focused on potentiometers and sensors for 30 years.

200FCW
200FCW

200FCW

Potentiometer-type Pedals

瀏覽量: Time: 2023-01-09

    Characteristics:

  • With conductive plastic element

  • Stepping see-saw pedal type

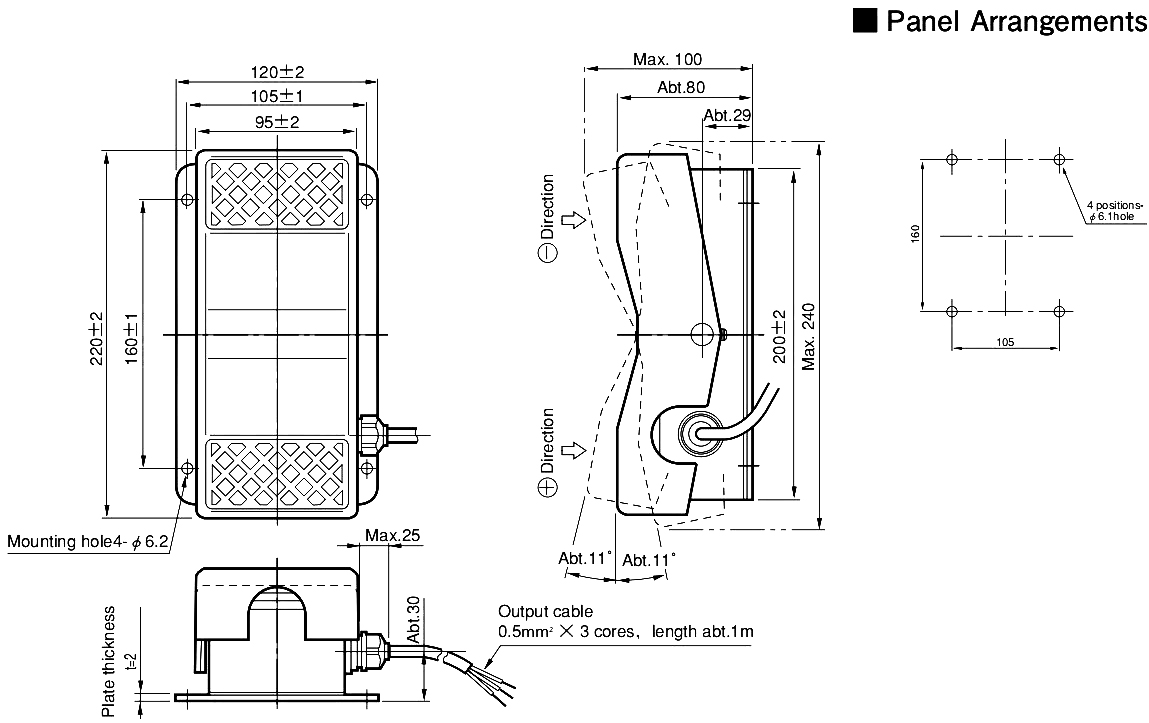

Dimension


Parameter

General Specifications

Operating method

Stepping see-saw pedal type.

Operating angle

Approx.±11°

Operating force

Standard spring return device: Automatically return to center. Abt. 20N(Abt. 2,000gf.)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ,98m/s2

Shock

294m/s2

Life expectancy

Approx.1,000,000 operations.

Mass

Approx.1.5kg

Electrical Specifications

Potentionmeter incorporated

SFCP22E,10kΩ ±20%,0.35W, independent linearity tolerance±3%(conductive plastic resistive element)

Electrical rotating angle

Approx. 75°, Center shortened zone:With a shortened zone with abt.8° in the center position

Center returning accuracy

50%±1.5%

Output smoothness

<against input voltage 0.2%

Contact resistance variation

<5%C.R.V.

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V A.C.

Insulation resistance

>1000MΩ(500V.D.C.)

Special Specifications Available

With swith incorporated

Regarding rating of switch, please see page 62. If you requite the pedal with one switch, unless speciffed, we supply the pedal with A version swich (code-swich with “ON” operation at about 3° flom the beginning of stepping).

Special return type

Automatically one-sided return type

Special tap

With a center tap on the incorporated pot.

With hall IC type potentiometer incorporated

Please note that if the hall IC potentiometer is used, there's no center short zone.
