Sibo has focused on potentiometers and sensors for 30 years.

C70FCA
C70FCA

C70FCA

Potentiometer-type Pedals

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Accelerator pedal

  • Coductive plastic potentiometer type

  • Metal case with high reliability

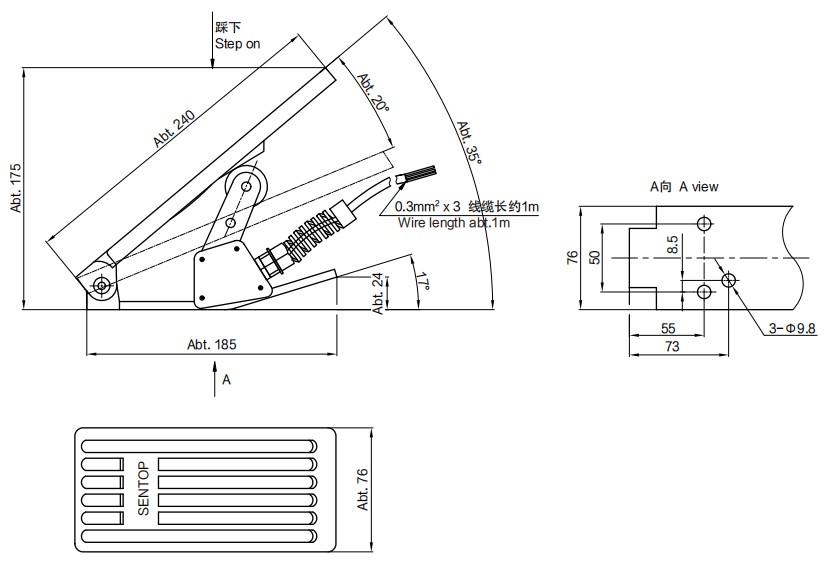

Dimension


Parameter

General Specifications

Operating angle

Approx. 20°

Operating force

15~27N

Mechanical life expectancy

5,000,000

Operating temperature

-30℃~+70℃

Storage temperature

-30℃~+70℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx. 1100g

Protection degree

IP54

Electrical Specifications (Potentiometer)

Standard resistance

10KΩ±20%, 5KΩ±20%

Effective electrical angle

Approx. 60°

Independent linearity tolerance

±3%

Resolution ratio

Essentially infinite

Power rating

0.25W

Output smoothness

<Against input voltage 0.2%

Contact resistance variation

<5%CRV

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Terminal Connection Instructions

Color

Red,Black,White

Title

VCC,GND,OUT

Special Specifications Available

Electrical specifications

POT. with other resistance(1K, 2K), special output characteristic, speical cable length, etc."

Other special specifications

With matching signal module
