Sibo has focused on potentiometers and sensors for 30 years.

C-S50JCK-10815
C-S50JCK-10815
C-S50JCK-10815
C-S50JCK-10815

C-S50JCK-10815

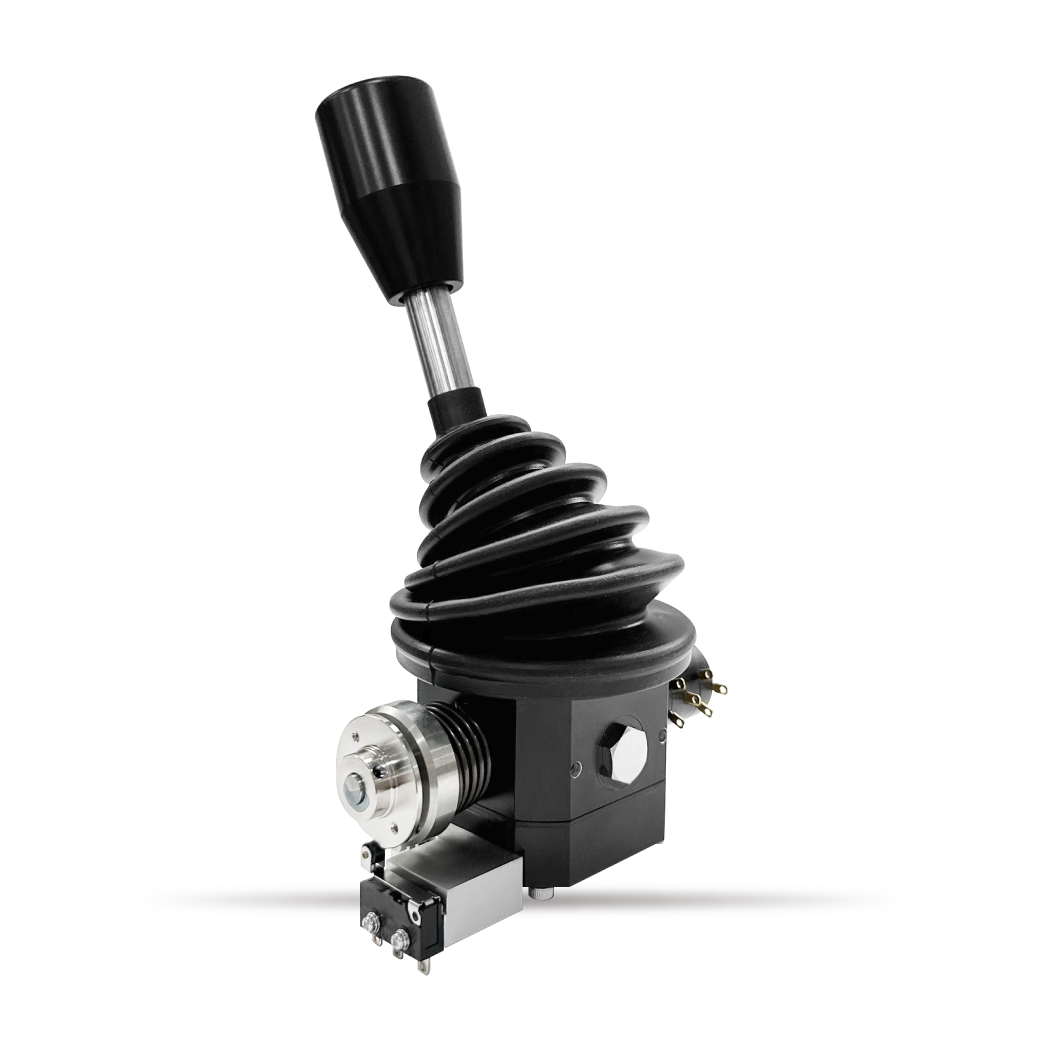

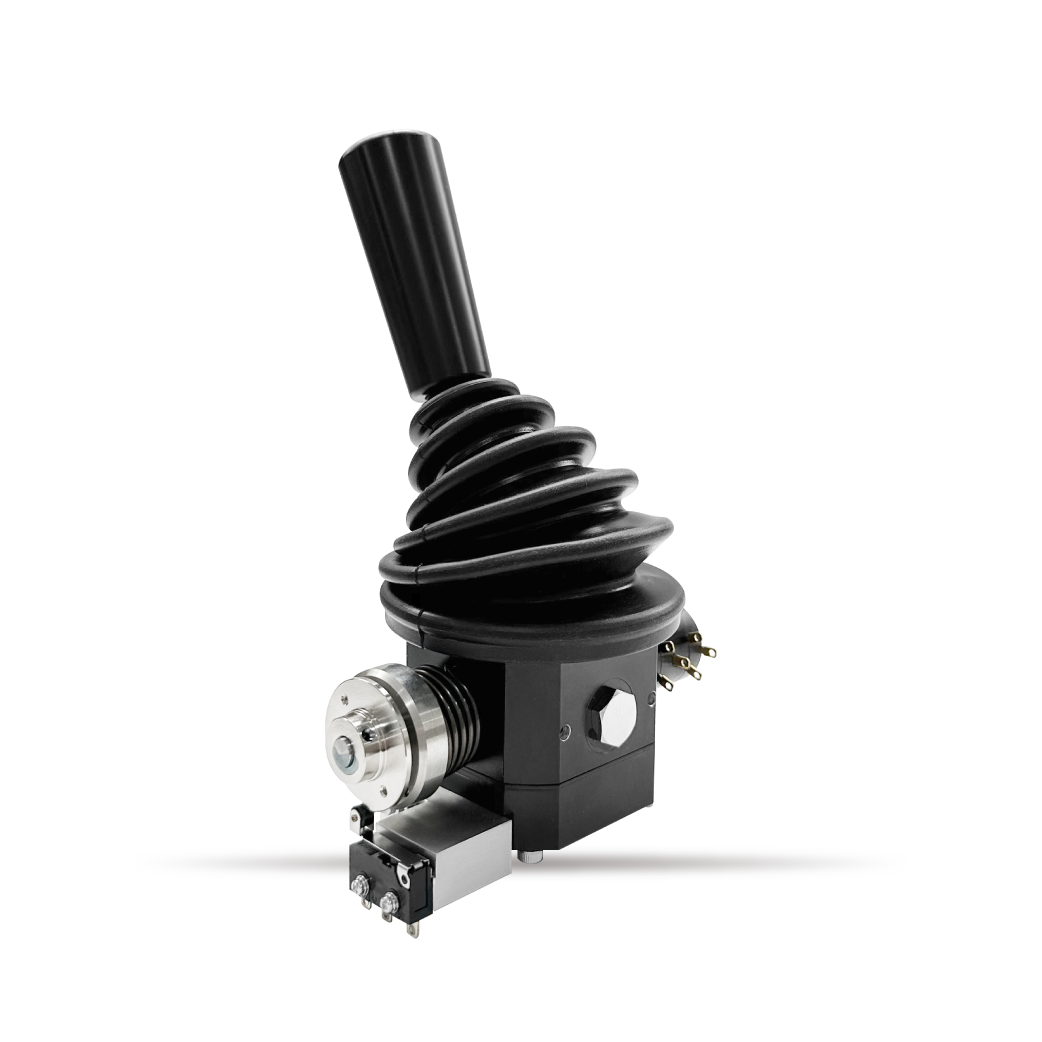

Potentiometer-type Joysticks

瀏覽量: Time: 2023-05-17

    Characteristics:

  • Medium-sized joystick、imported potentiometer incorporated

  • 1-dimensional coordinate

  • Spring return to Y-end

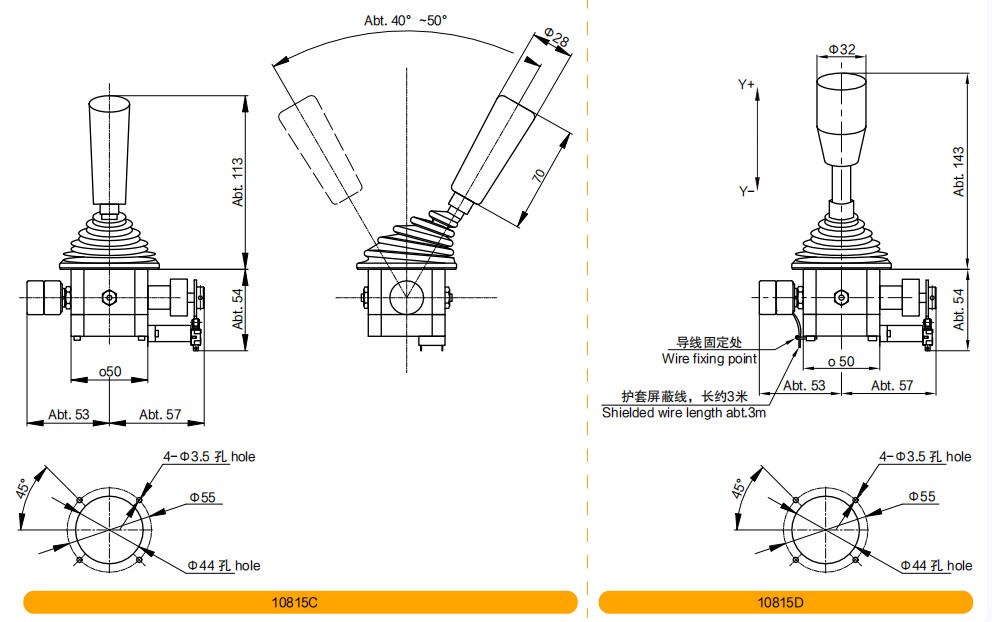

Dimension


Parameter

General Specifications

Operating angle

Abt. ±40°~±50°

Operating force(note)

Abt. 3N~15N

Life expectancy

Approx. 5,000,000

Operating temperature

-20℃~+65℃

Storage temperature

-20℃~+65℃

Vibration

10~55Hz 98m/S²

Shock

294m/S²

Mass

Approx. 460g

Protection degree

IP54 (Above panel)

Electrical Specifications (Potentiometer)

Standard resistance value

10K±15%

Independent linearity tolerance

±3%

Output smoothness

<Against input voltage 0.2%

Contact resistance variation

<5%CRV

Resolution

Essentially infinite

Power rating

0.13W

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Center tap angle

Approx.3º (±1.5º)

Wiper current

10μA ~1mA (Max. 1mA)

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch;SWPOT (switch-pot)

Rating

50V.D.C. / 0.1A;24V.D.C / 50mA

Mechanical life expectancy

Approx. 100,000;Approx. 1,000,000

Insulation resistance

>1000MΩ (500V.D.C.);>1000MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.);1min (500V.A.C.)

Special Specifications Available

Other output signals

CAN OPEN, USB signal, RS-485 signal, wireless remote control, etc.

Special knob

Customized grip knob
