Sibo has focused on potentiometers and sensors for 30 years.

JP45
JP45

JP45

Potentiometer-type Joysticks

瀏覽量: Time: 2023-03-03

    Characteristics:

  • Imported potentiometer incorporated

  • Various knobs available

  • Various output signals

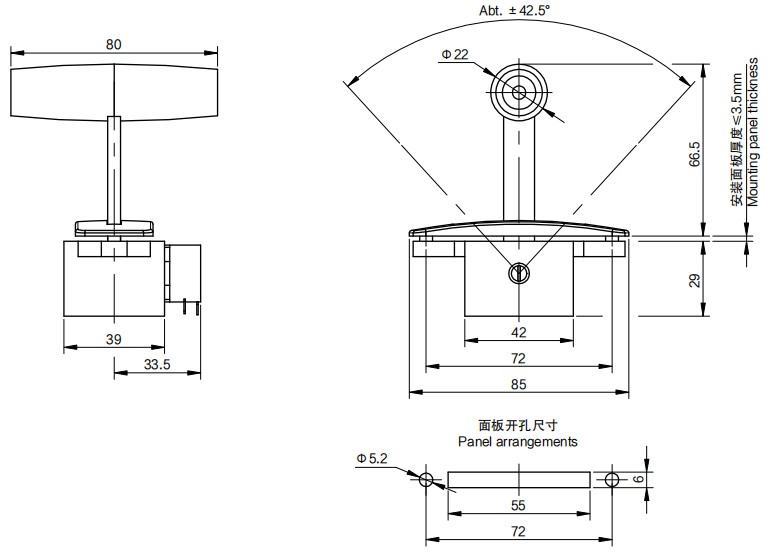

Dimension


Parameter

General Specifications

Operating angle

Approx. ±42.5°(From center position)

Operating force

Approx. 3.5N~5N

Max. operating force

100N

Mechanical life expectancy

Approx. 10,000,000

Operating temperature range

-20℃~+85℃

Storage temperature range

-20℃~+85℃

Mass

Approx. 300g

Protection grade

IP54

Electrical Specifications (Potentiometer)

Standard resistance value

10K±15%

Independent linearity tolerance

±3%

Output smoothness

Against input voltage 0.2%

Contact resistance variation

<5%CRV

Resolution

Essentially infinite

Power rating

0.2W

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Special Specifications Available

Special knob

Special knob and motifs on the knob

Other special specifications

With customer-specific connectors;With protection module
