Sibo has focused on potentiometers and sensors for 30 years.

JP30
JP30

JP30

Potentiometer-type Joysticks

瀏覽量: Time: 2023-03-03

    Characteristics:

  • Imported potentiometer incorporated

  • Metal housing case

  • Small-sized

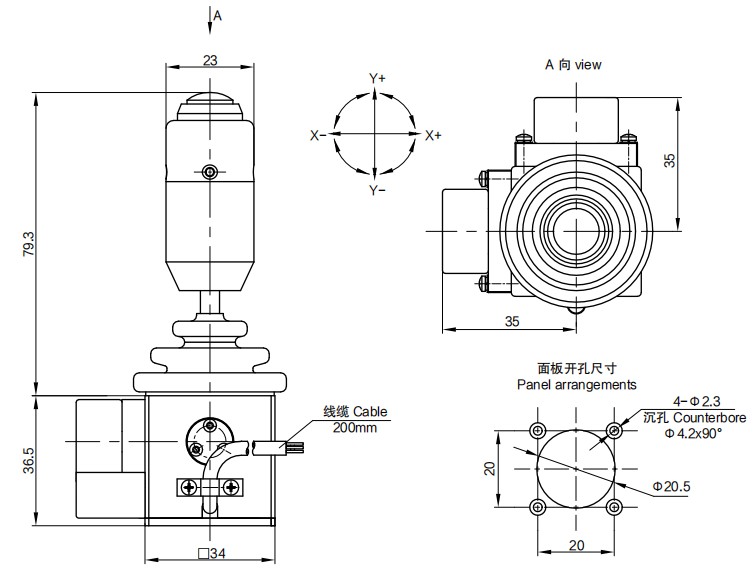

Dimension


Parameter

General Specifications

Operating angle

Approx. ±20°(From center position)

Operating force

Approx. 4N~80N

Life expectancy

<5,000,000

Operating temperature

-20℃~+65℃

Storage temperature

-20℃~+65℃

Mass

Approx. 150g

Protection degree

IP65 (Above panel)

Electrical Specifications (Potentiometer)

Standard resistance value

10K±15%

Independent linearity tolerance

±3%

Resolution

Essentially infinite

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Power rating

0.1W

Electrical angle

Approx. 40°

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch

Rating

48V.D.C. / 0.1A

Electrical life expectancy

1,000,000

Mechanical life expectancy

-

Insulation resistance

>1000MΩ (500V.D.C.)

Dielectric strength

1min (500V.A.C.)

Terminal Connection Instructions

Color

Red;Black;Green;White;Yellow

Title

VCC;GND;SW;X;Y

Special Specifications Available

Special knob

Customized knob; with push button switch (with light is optional), Details please check "Other optional knobs"

Other special specifications

With DEUTSCH connector (6pin);With control module
