Sibo has focused on potentiometers and sensors for 30 years.

100JBM
100JBM

100JBM

Potentiometer-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • 3-dimensional coordinate type joystick

  • Potentiometer incorporated type

  • With conductive plastic element

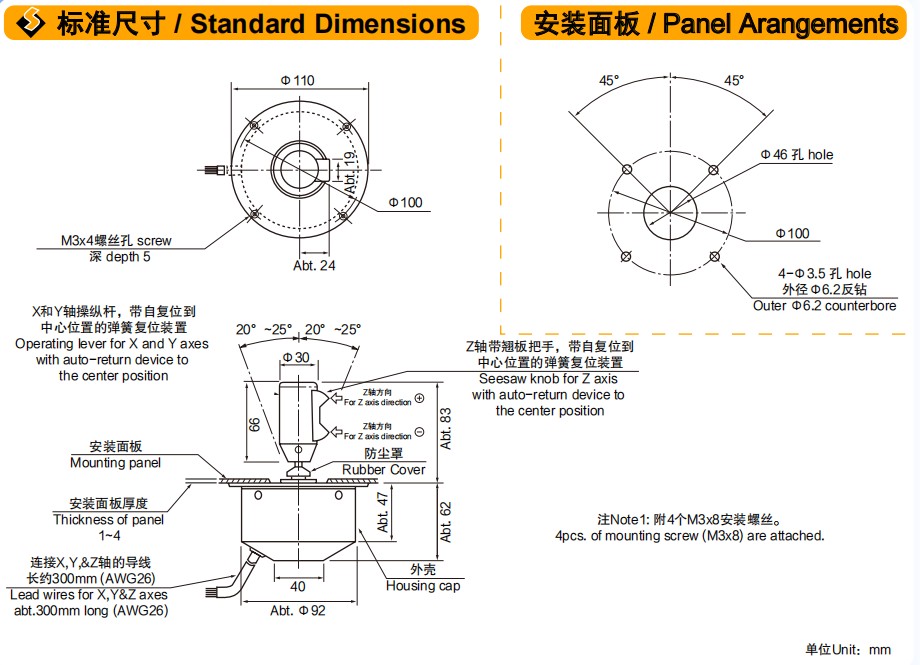

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

2-dimensional coordinate type : Omni-directionally approx. ±20° ~ ±25° operation from center position, 3-dimensional coordinate type : Approx. ±15°~±19° operation from the center position of the seesaw knob, in addition to the controlling range of 2-dimensional coordinate type.

Operating force

Standard spring return device:Automatically return to center.

X, Y directions

Approx. 0.8~2.3N (80~230gf.) [with 2 springs(with directive feeling)as standard version]

Z direction

Approx. 24~30mN·m (240~300gf·cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ,98m/s2

Shock

294m/s2

Life expectancy

Approx. 5,000,000 operations for X and Y axes, Approx. 2,000,000 operations for Z axis.

Mass

3-dimensional coordinate type : Approx. 410g

General Electrical Specifications

Potentiometers mounted

- For X and Y axes: SFCP22E, 10kΩ±15%, 0.13W (conductive plastic resistive element), Independent linearity tolerance ±3%, Electrical rotating angle : Approx. 40°, - For Z axis: Special potentiometer RMP30AY is exclusively used for seesaw knob 10kΩ±15%, 0.1W, Independent linearity tolerance ±3%, Electrical rotating angle: Approx. 30°

Output smoothness

<against input voltage 0.2%

Contact resistance variation

<5%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

>1000MΩ(500V.D.C)
