Sibo has focused on potentiometers and sensors for 30 years.

S50JCK-4803P
S50JCK-4803P

S50JCK-4803P

Potentiometer-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Automatically return to center

  • With spring return device

  • -10V~10V voltage output, V-type voltage output and current output

  • Mid relay signal (voltage output)

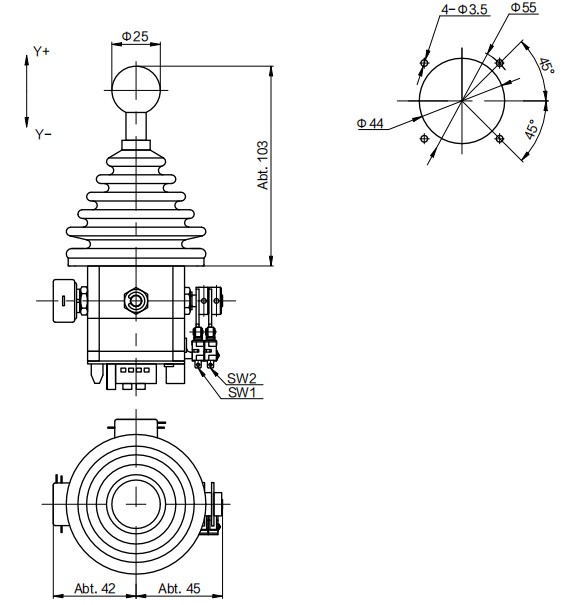

Dimension


Parameter

General Specifications

Operating angle

±30°~± 35°(From center position)

Operating method

With spring return device

Operating force

Approx. 3N~15N

Maximum allowable force

300N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature

-20℃~+65℃

Storage temperature

-40℃~+85℃

Mass

Approx. 370g

Protection degree

IP54(Above panel)

Terminal Connection Instructions

24V/0V

POWER

OUT+/OUT-

Output analog signal

COM

Relay switch.COM

+R

Relay switch.'+'direction

ZR

Relay switch.middle position

-R

Relay switch.'-'direction

Electrical Specifications (S50JCK-4803P-V2)

Input voltage

+24V.D.C.

Output signal

1.Voltage output (range adjustable);2.Mid relay signal (<±3°) ;3.Forward and backward relay signal (<-3° or >3°)

Relay rating

250V.A.C. / 5A

Load resistance

>100KΩ

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Overvoltage protection

<20V.D.C.

Reverse polarity protection

<-10V.D.C.

Electrical Specifications (S50JCK-S4803P-V2)

Input voltage

+24V.D.C.

Output Signal

1.Voltage output (range adjustable);2.Mid relay signal (<±3°) ;3. Forward and backward relay signal (<-3° or >3°)

Relay rating

250V.A.C. / 5A

Load resistance

>100KΩ

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Overvoltage protection

<20V.D.C.

Reverse polarity protection

<-10V.D.C.

Electrical Specifications (S50JCK-S4803P-I1)

Input voltage

+24V.D.C.

Output Signal

Current output 4~20mA (range adjustable)

Load resistance

<500Ω

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Overvoltage protection

<20V.D.C.

Reverse polarity protection

<-10V.D.C.
