Sibo has focused on potentiometers and sensors for 30 years.

JP50
JP50

JP50

Potentiometer-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Medium-sized joystick, potentiometer is made in Japan

  • Customized function is available

  • Available for combination with modules to realize Bus output

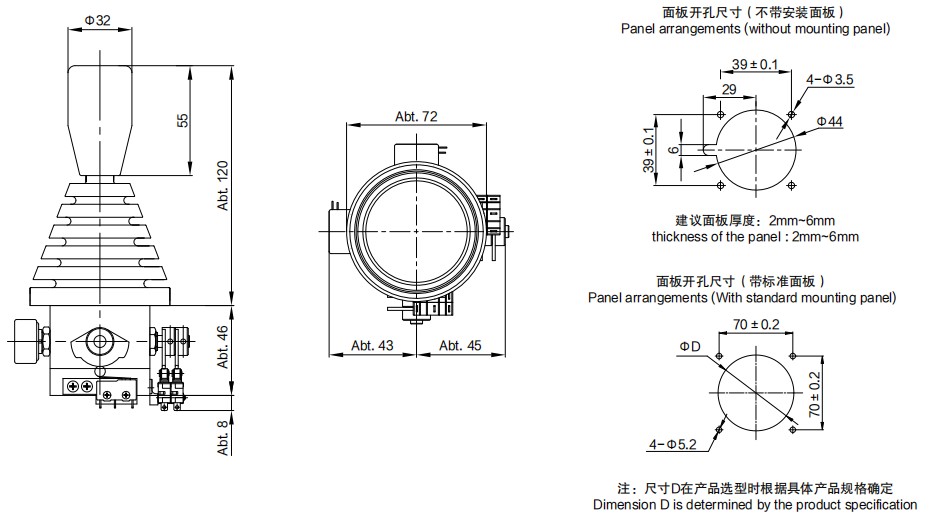

Dimension


Parameter

General Specifications

Operating angle

Abt. ±32° Omni-directional

Operating force(note)

Approx. 3.5N~10N

Life expectancy

Approx. 5,000,000

Operating temperature

-20℃~+70℃

Storage temperature

-20℃~+70℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx. 460g

Protection degree

IP65 (Above panel)

Electrical Specifications (Potentiometer)

Standard resistance value

10K±15%

Independent linearity tolerance

±3%

Output smoothness

<Against input voltage 0.2%

Contact resistance variation

<5%CRV

Resolution

Essentially infinite

Power rating

0.2W

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Center tap angle

Approx. 3º (±1.5º)

Repeatability of tolerance (no center tap)

Approx. ±2%

Wiper current

10μA ~1mA (Max. 1mA)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch; Microswitch

Rating

48V.D.C. / 0.1A;125V.A.C. / 5A

Electrical life expectancy

1,000,000;10,000

Mechanical life expectancy

- ;10,000,000

Insulation resistance

>1000MΩ (500V.D.C.);>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.);1min (1000V.A.C.)

Models of Products with Signal Converters / Output Signals(For more general electrical specifications, please check our catalog.)

4803P-V2

-10~10V voltage output

S4803P-V2

0~10V V-type voltage output

S4803P-I1

4~20mA current output

S4803P-CAN

CANOPEN

S4803P-RS485

RS485

Special Specifications Available

Other output signals

USB signal, wireless remote control, digital signal output, dual signal output etc.

Special Microswitches

With other microswitches models

Special knob

Special lever length, customized knob, with push button switch (with light is optional), C106, C118

Other mechanical specifications

Special operating force, mid position self-locking function, with spring return device for single side
