Sibo has focused on potentiometers and sensors for 30 years.

40JBK
40JBK

40JBK

Potentiometer-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • 2-dimensional coordinate type joystick

  • Potentiometer incorporated type

  • With conductive plastic element

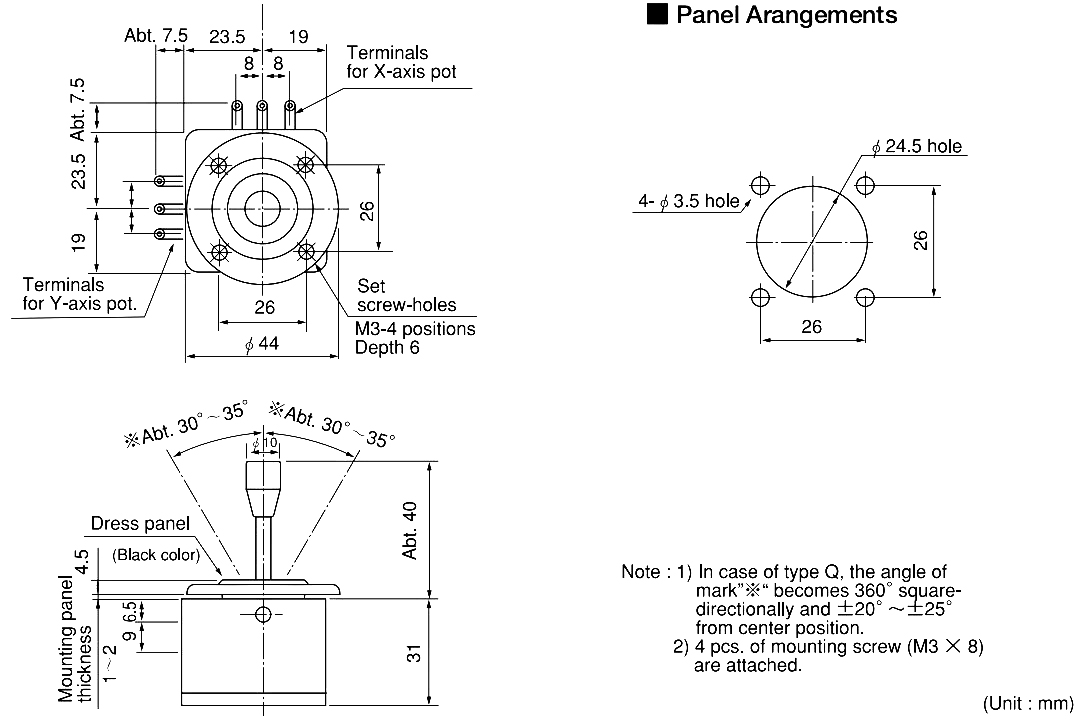

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

2-dimensional coordinate type. Omni-directionally approx. ±30°~±35° from center position.±30°~±35°

Operating force

Standard : Approx. 0.2~0.6N (20~60gf.), High torque type : Approx.0.7~1.5N (70~150gf.), With spring return device (omni-directional type) : Approx. 0.6~3N (60~300gf.)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ,98m/s2

Shock

294m/S2

Life expectancy

Approx.5,000,000 operations

Mass

Without spring return device : Approx. 160g, With spring return device : Approx. 180g

General Electrical Specifications

Potentiometer mounted

Special conductive plastic resistive element is exclusively used for 40JB series.

Total resistance value

10KΩ±15%

Independent linearity tolerance

0.2W

Electrical rotating angle

Approx.60°

Rated power 0.1W

±3%

Output smoothness

<against input voltage 0.2%

Contact resistance variation

<5%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

>1000MΩ(500V.D.C)
