Sibo has focused on potentiometers and sensors for 30 years.

30JLK
30JLK

30JLK

Potentiometer-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Low-cost

  • 1-dimensional coordinate type joystick

  • With conductive plastic element

  • Multifunctional industrial joystick

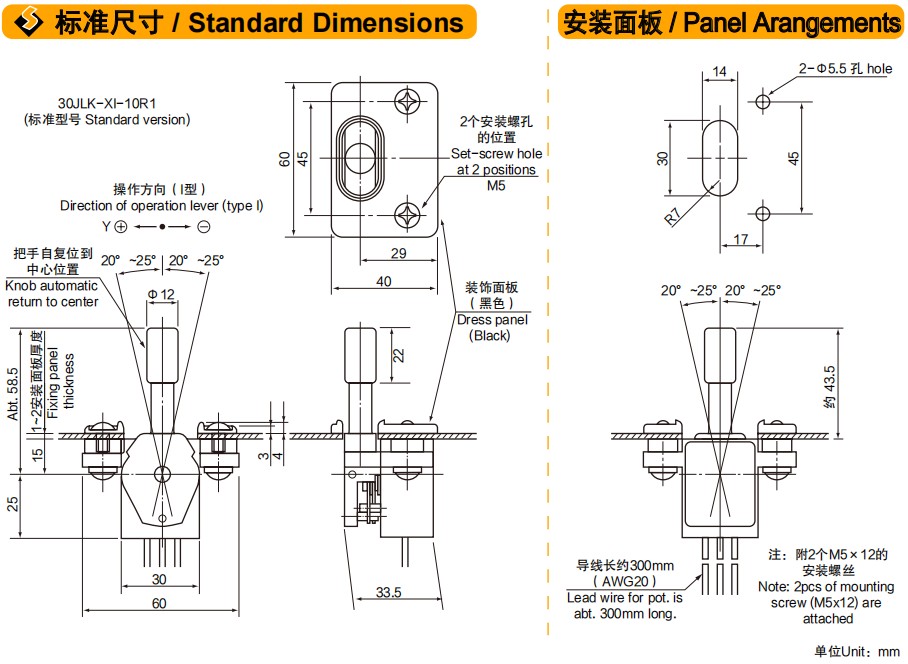

Dimension


Parameter

General Specifications

Controlling range of operating lever

±20°~± 25°(From center position)

Operating force

With spring return device: automatically return to center Approx. 1~2.5N (100~250gf), With rubber cover: Approx. 1~5.5N (100~550gf))

Operating temperature range

-20℃~+60℃

Vibration

10~55Hz 98 m/s2

Shock

294 m/s2

Mechanical life expectancy

Approx. 2,000,000

Mass

Approx. 100g

Electrical Specifications

Potentiometers mounted

Special conductive plastic resistive element is exclusively used for 30JL series

Resistance value

10KΩ±20%

Independent linearity tolerance

±5%

Electrical rotating angle

Approx. 40°

Power rating

0.1W

Output smoothness

<Against input voltage 0.2%

Contact resistance variation

<6% C.R.V.

Resolution

Essentially infinite

Dielectric strength

1 min(500V.A.C.)

Insulation resistance

>1000MΩ(500V.D.C.)

Special Specifications Available

Other Mechanical Specifications

Dust proof rubber, sub-panel for mounting, special knobs shapes and detent mechanism

Other Electrical Specifications

Micro switch, alteration of potentiometer's total resistance value, intermediate tap of potentiometer and switch incorporated inside knob
