Palm Grips

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi Switch type

  • Knob configured with 6 up to 8 push button switches

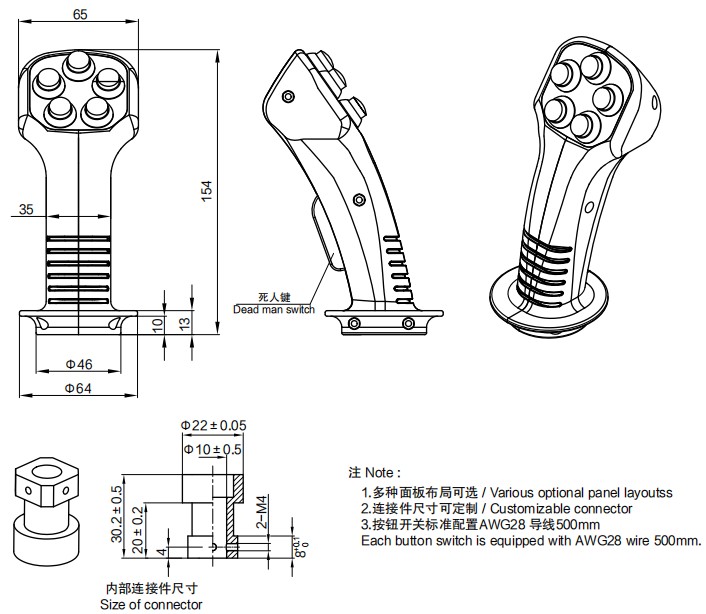

Dimension


Parameter

Optional Function

Switch type

6 button switches at most and 1 DEAD-MAN switch

Thumb joystick type

1 thumb joystick, 2 button switches at most and 1 DEAD-MAN switch

Matching joystick

SAKAE: 50JC SENTOP: JP50、JH50;SAKAE: 90JA、90JB ;Other joystick;Be used alone"

Specifications (Thumb Joystick)

Operating force

Approx. 3.1N

Applied voltage

5V±0.01V

Output signal

0~5V(Available for other output ranges)

Life expectancy

>1,000,000

Protection degree

IP68

Electrical Specifications (Switch)

Type

Button switch;DEAD-MAN switch

Rating

48V.D.C. / 0.1A;30V.D.C. / 0.1A

Life expectancy

Approx. 100,000;Approx. 100,000

Insulation resistance

>1000MΩ (500V.D.C.);>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.);1min (600V.A.C.)

Protection degree

IP67 ;IP40
