Sibo has focused on potentiometers and sensors for 30 years.

OF20HHP
OF20HHP

OF20HHP

Oli-Filled POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi-turn

  • Hybrid

  • Bushingmount&Servomount

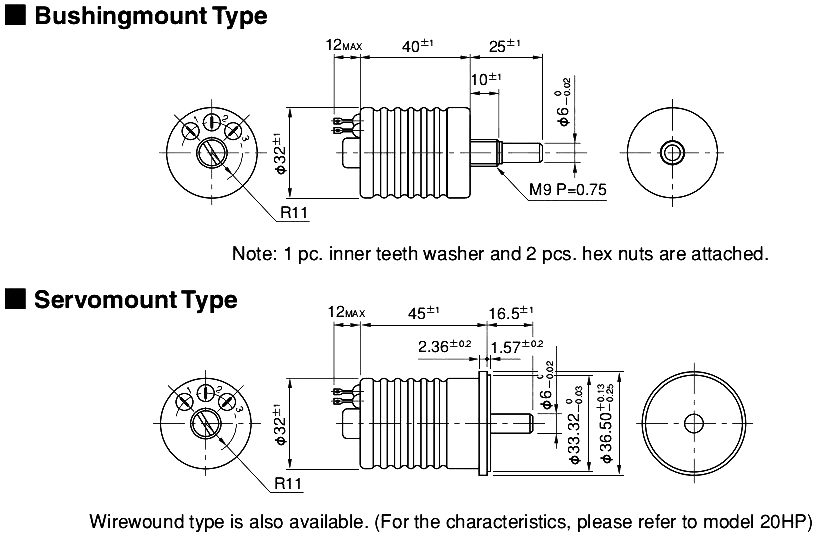

Dimension


Parameter

General Specifications

Standard Resistance Range

2K,5K,10K,20K,50K,100K(Ω)

Total Resistance Tolerance

Standard Class ±10%(K), Precision Class ±5%(J)

Independent Linearity Tolerance

Standard Class ±0.25%, Precision Class ±0.1%

Resolution

Essentially infinite

Output Smoothness

<against input voltage0.015%

Contact Resistance Variation

<3% C.R.V.

Power Rating

2.0W

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<20mN·m(200gf·cm)

Stopper Strength

Approx.0.9N•m(9kgf•cm)(Bushingmount type), Approx.0.6N•m(6kgf•cm)(Bushingmount type)

Resistance Temperature Coefficient

±100p.p.m./℃

Mass

Approx.100g

Special Specifications Available

Special turns

5-turn type

Special shaft type

Shaft dia. (φ 6.35mm)&bushing with inch dimension, special machining on the shaft

Special tap

Extra tap (Available up to 1 tap)

Specia type

Wirewound resistive element type (Model OF20HP and OF20HPS. For technical details of these types, please refer to those of models 20HP and 20HPS in this catalog.)
