Sibo has focused on potentiometers and sensors for 30 years.

OF46HD
OF46HD

OF46HD

Oli-Filled POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi-turn

  • Wirewound

  • Bushingmount&Servomount

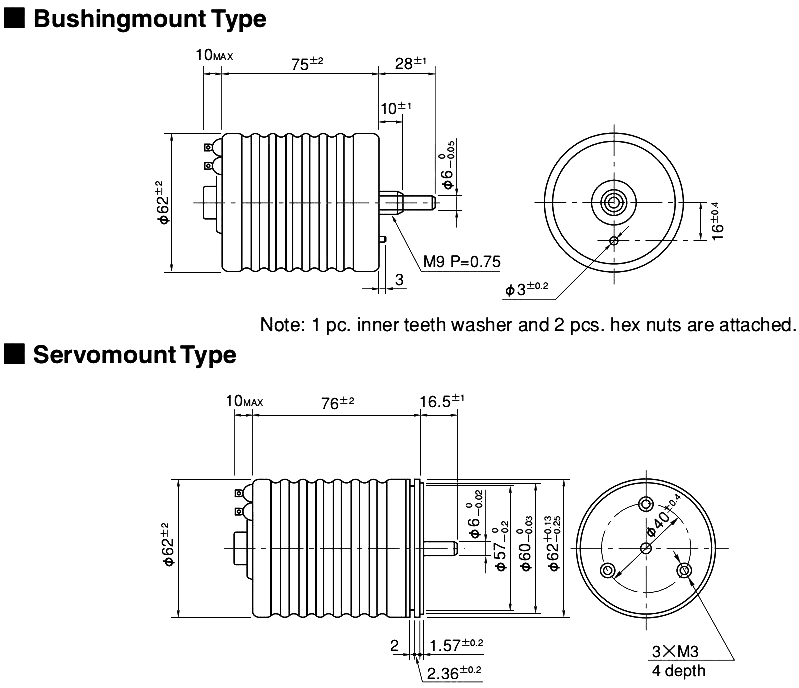

Dimension


Parameter

General Specifications

Standard Resistance Range

100Ω~100KΩ

Max. Practical Resistance Value

200KΩ

Total Resistance Tolerance

Standard Class ±3%(H)[(±5% (J) in case of within 1kΩ )], Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.3%, Precision Class ±0.1%, (±0.15% in case of within 5kΩ )

Power Rating

5.0W

Noise

<100ΩE.N.R.

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<30mN•m(300gf•cm)

Stopper Strength

Approx.0.9N•m(9kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.290g

Special Specifications Available

Special turns

3-turn and 5-turn type (These housing lengths are the same as that of 10-turn type:75 ± 2mm)

Special shaft type

Shaft dia. (φ 6.35mm)&bushing with inch dimension, special machining on the shaft, shaft with front and rear extension (Rear shaft with 6mm dia. and 28mm length.)

Special accessories

With limit-switches

Special gangs

Multi-ganged (Available up to 2 gangs. Please note that mounting method is changed from bushingmount to screw-mounting)
