Sibo has focused on potentiometers and sensors for 30 years.

25HP
25HP

25HP

Multi-turn Wire-wound POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi-turn (standard: 5-turn, 10-turn)

  • Wirewound

  • Bushingmount&Servomount

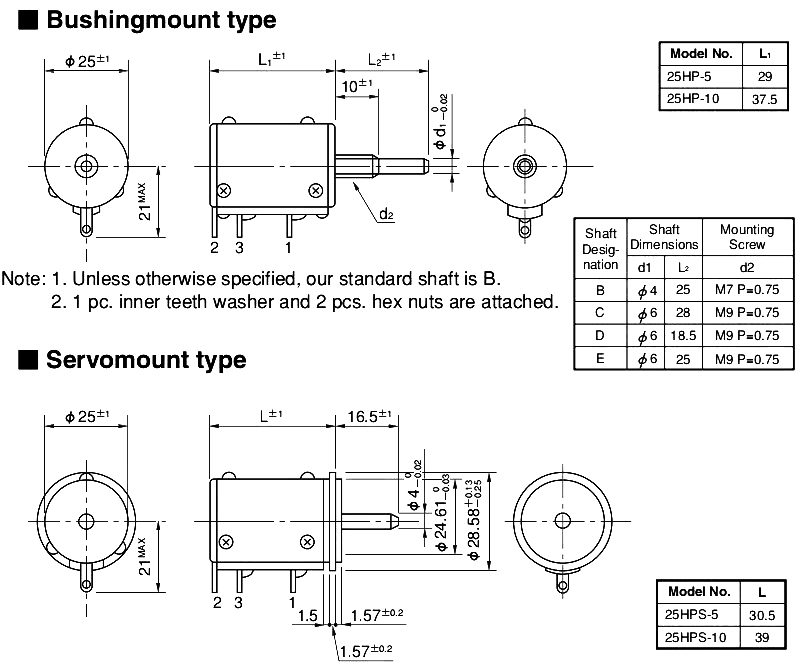

Dimension


Parameter

General Specifications

Standard Number Of Turns

10-turn

Standard Resistance Range

100Ω~100KΩ

Max. Practical Resistance Value

200KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.2%, Precision Class ±0.1%, (Within 5kΩ) (±0.15%)

Power Rating

2.0W

Noise

<100ΩE.N.R.

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<8mN•m(80gf•cm)(Bushingmount type)、<5mN•m(50gf•cm)(Servomount type)

Stopper Strength

Approx.0.9N•m(9kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.60g

Special Specifications Available

Special turns

3-turn type (S25HP-3), 15-turn type (S25HP-15), 20-turn type (S25HP-20)

Special resistance value

Lower resistance (10Ω , 20Ω , 50Ω )

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 10mm length),special machining on the shaft, shaft dia. (φ 3.175mm,φ 6.35mm) & bushing with inch dimension

Special adaptor

With a limit-switch adaptor

Special taps

Extra taps (Available up to 5 taps)

Special gangs

Multi-ganged (Available up to 2 gangs)
