Sibo has focused on potentiometers and sensors for 30 years.

12HP-E
12HP-E

12HP-E

Multi-turn Wire-wound POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi-turn (standard: 5-turn, 10-turn)

  • Wirewound

  • Bushingmount&Servomount

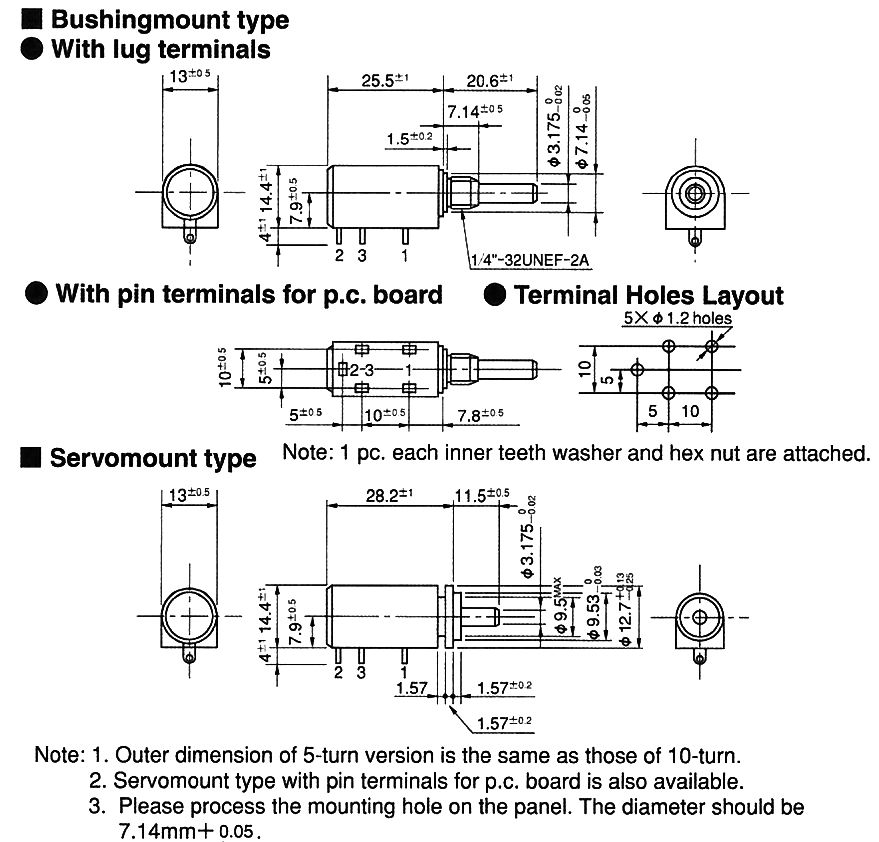

Dimension


Parameter

General Specifications

Standard Number Of Turns

10-turn

Standard Resistance Range

100Ω~50KΩ

Max. Practical Resistance Value

100KΩ、150KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.25%, Precision Class ±0.1%, (Within 5KΩ)(±0.15%)

Power Rating

1.5W

Noise

<100ΩE.N.R.

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<3mN•m(30gf•cm)(Bushingmount type)、<2mN•m(20gf•cm)(Servomount type)

Stopper Strength

Approx.0.15N•m(1.5kgf•cm)

Appropriate fastening torque of the nut

<0.8N•m(8kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.10g

Special Specifications Available

Special turns

3-turn type (S12HP-3E)

Special resistance value

Lower resistance values (20Ω, 50Ω )

Special shaft type

Shaft with front and rear extension (Rear shaft with 0.8mm dia. and 10mm length), special machining on the shaft

Special housing case

Simple sealed housing (in case of servomount type, the housing length becomes longer by 1.8mm)
