Sibo has focused on potentiometers and sensors for 30 years.

10HP
10HP

10HP

Multi-turn Wire-wound POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi-turn (standard: 5-turn, 10-turn)

  • Wirewound

  • Bushingmount

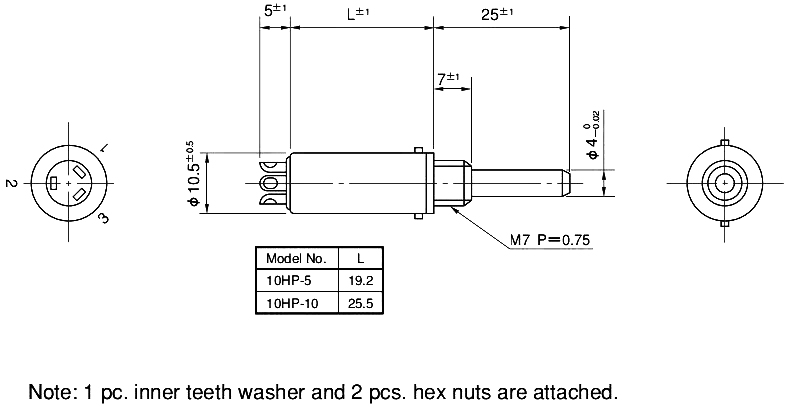

Dimension


Parameter

General Specifications

Standard Number Of Turns

5-turn

Standard Resistance Range

100Ω to 20kΩ

Max. Practical Resistance Value

50kΩ

Total Resistance Tolerance

Standard Class ±3% (H), Precision Class ±1% (F)

Independent Linearity Tolerance

Standard Class ±0.35%、Precision Class ±0.2%

Power Rating

0.5W

Noise

<100ΩE.N.R.

Electrical Travel

1800°±5°

Mechanical Travel

1800°

Insulation Resistance

>100MΩ(500V.D.C.)

Dielectric Strength

1 minute at 500V.A.C.

Starting Torque

<3mN•m(30gf•cm)

Stopper Strength

Approx. 0.1N•m(1kgf•cm)

Appropriate fastening torque of the nut

<1N•m(10kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx. 10g

Special Specifications Available

Special turns

3-turn type (S10HP-3)

Special resistance values

Lower resistance values (20Ω , 50Ω )

Special shaft type

Shaft dia. (φ 3.175mm) & bushing with inch dimension, Special machining on the shaft, Shaft with front and rear extension (Rear shaft with 0.8mm dia. and 10mm length)
