Sibo has focused on potentiometers and sensors for 30 years.

20HHP
20HHP

20HHP

Multi-turn Hybrid POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Multi-turn (standard: 5-turn, 10-turn)

  • Hybrid

  • Bushingmount&Servomount

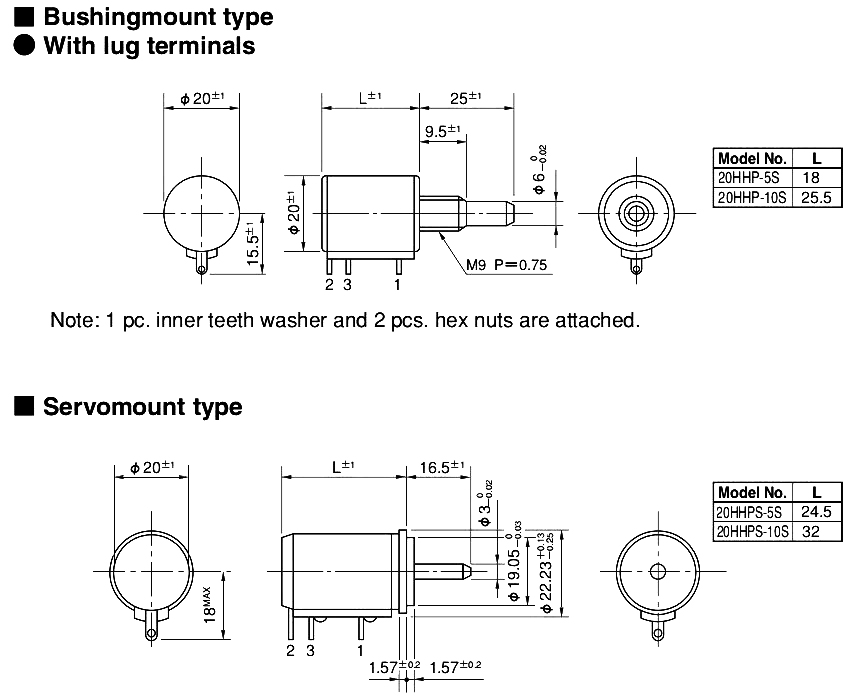

Dimension


Parameter

General Specifications

Standard Number Of Turns

10-turn

Standard Resistance Range

2K,5K,10K,20K,50K,100K(Ω)

Total Resistance Tolerance

Standard Class ±10%(K), Precision Class ±5%(J)

Independent Linearity Tolerance

Standard Class ±0.25%, Precision Class ±0.1%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.015%

Contact Resistance Variation

<3%C.R.V.

Power Rating

2.0W

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<5mN•m(50gf•cm)(Bushingmount type)、<3mN•m(30gf•cm)(Servomount type)

Stopper Strength

Approx.0.9N•m(9kgf•cm)(Bushingmount type)、Approx.0.6N•m(6kgf•cm)(Servomount type)

Resistance Temperature Coefficient

±100p.p.m./℃

Mass

Approx.25g

Special Specifications Available

Special shaft type

Special machining on the shaft, shaft with front and rear extension (Rear shaft with 2mm dia. and 10mm length), Shaft dia. (φ 6.35mm for 20HHP, φ3.175mm for 20HHPS) & bushing with inch dimension

Special housing case

Simple sealed housing (except servomount type)

Special tap

Extra tap (Available up to 1 tap)

Special accessories

With slipping-clutch(20mN?m ~ 60mN?m), with a limit-switch adaptor

Special gangs

Multi-ganged (Available up to 2 gangs)
