Sibo has focused on potentiometers and sensors for 30 years.

JH80
JH80

JH80

Magnetic-type Joysticks

瀏覽量: Time: 2023-08-07

    Characteristics:

  • Hall effect joystick

  • Firm and reliable structure

  • Various output signals

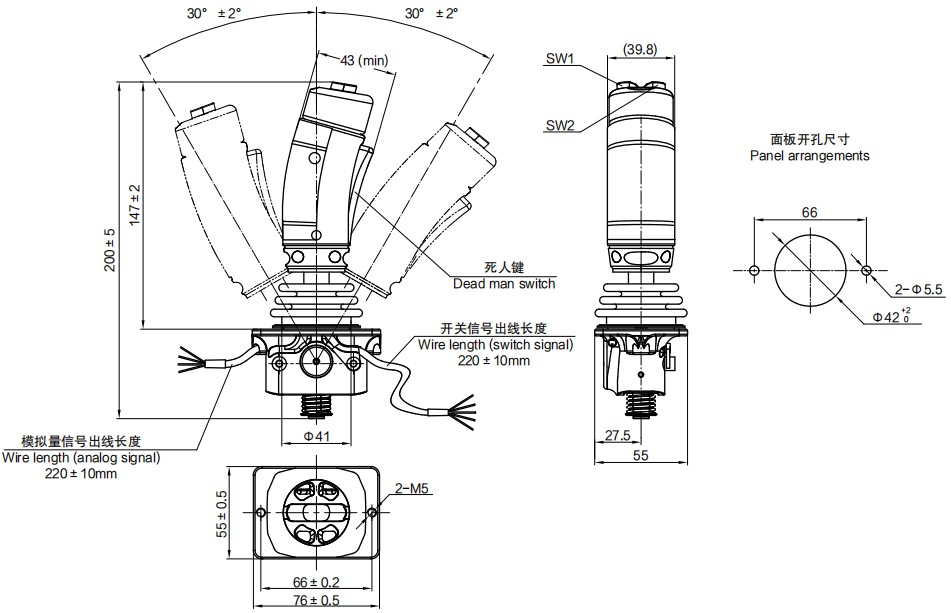

Dimension


Parameter

General Specifications

Operating angle

Approx. ±30°

Operating type

With spring return device

Operating force

Approx. 1.15~1.85 N·m

Max. operating force

300N

Mechanical life expectancy

Approx. 10,000,000

Operating temperature

-40℃~+85℃

Storage temperature

-40℃~+85℃

Mass

Approx. 550g(Without knob)

Protection degree

IP67(Electrical parts)

Electrical Specifications (Hall Effect Potentiometer)

Input voltage

5V±10%;9~30V;15~30V;15~30V

Output signal

0~100%Vcc;0~5V;0~10V;4~20mA

Current consumption (no-load)

<16mA;<25mA;<25mA;<35mA

Load resistance

>100KΩ;>100KΩ;>100KΩ;<600Ω

Output deviation at both ends

<1%.Vcc;<50mV;<50mV;<0.1mA

Effective electrical angle

±30°

Independent linearity tolerance

±2%

Resolution

4096 (12 bits)

Update rate

0.3ms

Vibration

10~200Hz 35m/s²

Shock

196m/s²,6ms

Dielectric strength

1min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz,1KHz 80%) EN61000-4-3:2006+A1:2010

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch

Rating

30V.D.C. / 0.1A

Electrical life expectancy

1,000,000

Mechanical life expectancy

-

Insulation resistance

>1000MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.)

Terminal Connection Instructions

Color

Analog signal / Switch signal

Title

Red;Black;White;Yellow / Blue;Black;Green; Yellow White

Special Specifications Available

Special analog signals

10V applied, 0~10V output;3.3V applied, 0~5V output;PWM

Other output signals

SSI, RS485, CANopen, USB, Modbus, wireless conmunication(LoRa), other digital signal, bus signal, etc.

Special knob

Customized knob

Other special specifications

With customer-specific connectors
