Sibo has focused on potentiometers and sensors for 30 years.

JH35
JH35

JH35

Magnetic-type Joysticks

瀏覽量: Time: 2023-02-09

    Characteristics:

  • Hall effect joystick

  • Compact structure

  • Connected by connectors

  • Redundant signal output

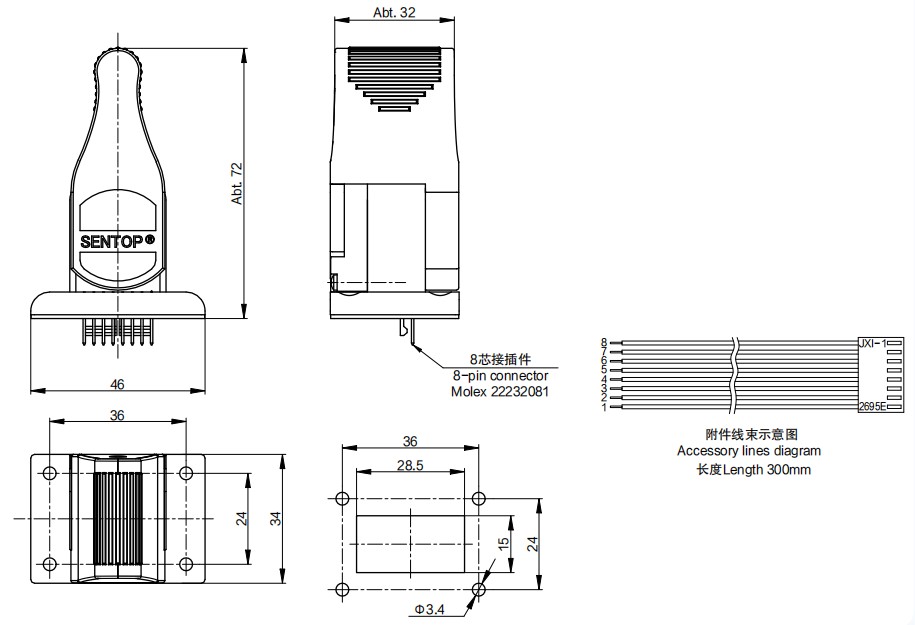

Dimension


Parameter

General Specifications

Operating angle

Approx. ±30°(From center position)

Operating force

Approx. 2.3N~3.4N

Max.operating force

50N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature range

-30℃~+70℃

Storage temperature range

-40℃~+85℃

Mass

Approx. 45g

Protection grade

IP66 (Electrical parts)

Electrical Specifications

Input voltage

5V±10%;9~30V;15~30V;15~30V;±12V±10%

Output signal

0~100%Vcc;0~5V;0~10V;4~20mA;-10~+10V

Current consumption (no-load)

<16mA;<25mA;<25mA;<35mA;<50mA

Load resistance

>100KΩ;>100KΩ;>100KΩ;<600Ω;>100KΩ

Output deviation at both ends

<1%.Vcc;<50mV;<50mV;<0.1mA;<50mV

Independent linearity tolerance

±2%

Resolution

4096 (12 bits)

Dielectric strength

1min(500V.A.C.)

Insulation resistance

>1000MΩ(500V.D.C.)

EMS

10V/m(80MHz~1GHz,1KHz 80%) EN61000-4-3:2006+A1:2010

Terminal Connection Instructions (0505、2405、2410、2442)

Color

Red;Black;White;Green;Red;Black;Yellow;Green

Title

VCC1;GND1;OUT1;Switch 1;VCC2;GND2;OUT2;Switch2

Port

1;2;3;4;5;6;7;8

Terminal Connection Instructions (±10V Output)

Color

Red;Black;White;Grey; Yellow;- ;Green;Green

Title

VCC1+12V;GND1;VCC1-12V;OUT1;OUT2 ;Switch 1;Switch2

Port

1;2;3;4;5;6;7;8

Special Specifications Available

Other output signals

PWM, RS485, CANopen, USB, Modbus, wireless conmunication(LoRa), other digital signal, bus signal, etc.

Other special specifications

With customer-specific connectors;With protection module
