Sibo has focused on potentiometers and sensors for 30 years.

JH22B
JH22B

JH22B

Fingertip joystick

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Fingertip Joystick

  • Coloured cap

  • Available redundant output

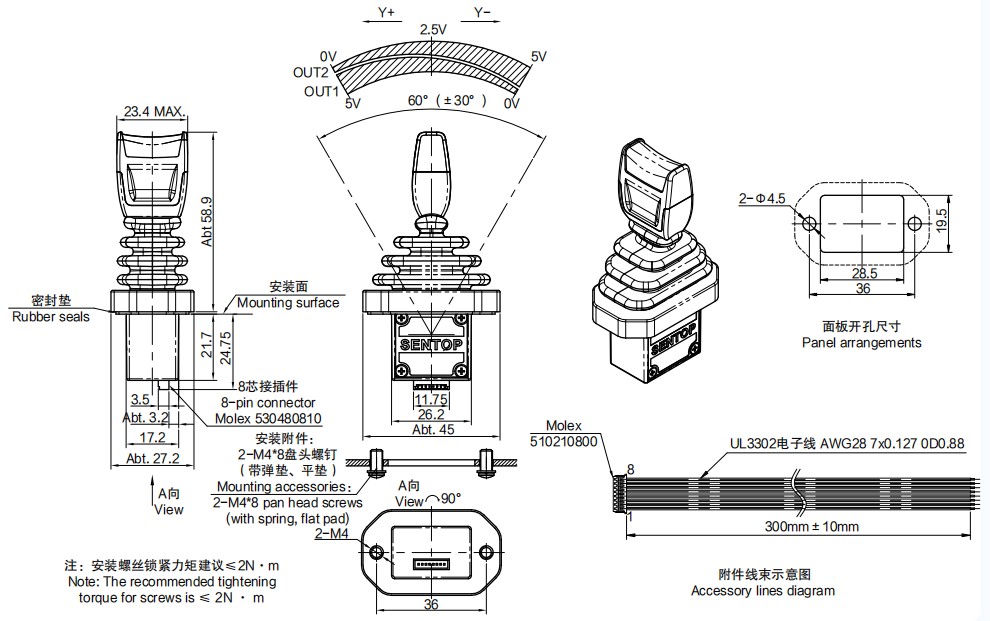

Dimension


Parameter

General Specifications

Operating angle

Approx. ±30°(From center position)

Operating force

With spring return device:Approx. 3.5N~8.5N;Without spring return device:Approx. 2N~5.5N

Max. operating force

50N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature range

-20℃~+85℃

Storage temperature range

-20℃~+85℃

Mass

Approx. 38g

Protection grade

IP67 (Electrical parts),IP65 (Above panel)

Electrical Specifications

Input voltage

5V±10%,9~30V,15~30V,15~30V

Output signal

0~100%Vcc,0~5V,0~10V,4~20mA

Current consumption (no-load)

<16mA,<25mA,<25mA,<35mA

Load resistance

>100KΩ,>100KΩ,>100KΩ,<600Ω

Output deviation at both ends

<1%.Vcc,<50mV,<50mV,<0.1mA

Independent linearity tolerance

±2%

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Terminal Connection Instructions

Color

Red, Black,White,Green,Green,Yellow,Black,Red

Title

VCC1,GND1,OUT1,Switch 1,Switch 2,OUT2,GND2,VCC2

Port

1,2,3,4,5,6,7,8

Special Specifications Available

Other output signals

10V applied, 0~10V output;3.3V applied, 0~5V output;PWM

Special knob

Special knob and motifs on the knob

Other special specifications

With customer-specific connectors;With protection module
