Sibo has focused on potentiometers and sensors for 30 years.

HMC60JHK
HMC60JHK

HMC60JHK

Magnetic-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • For multi functional control with compact sized cobra shaped knob

  • Potentiometer incorporated type

  • More than 4-dimensional coordinates type joystick

  • With spring return device

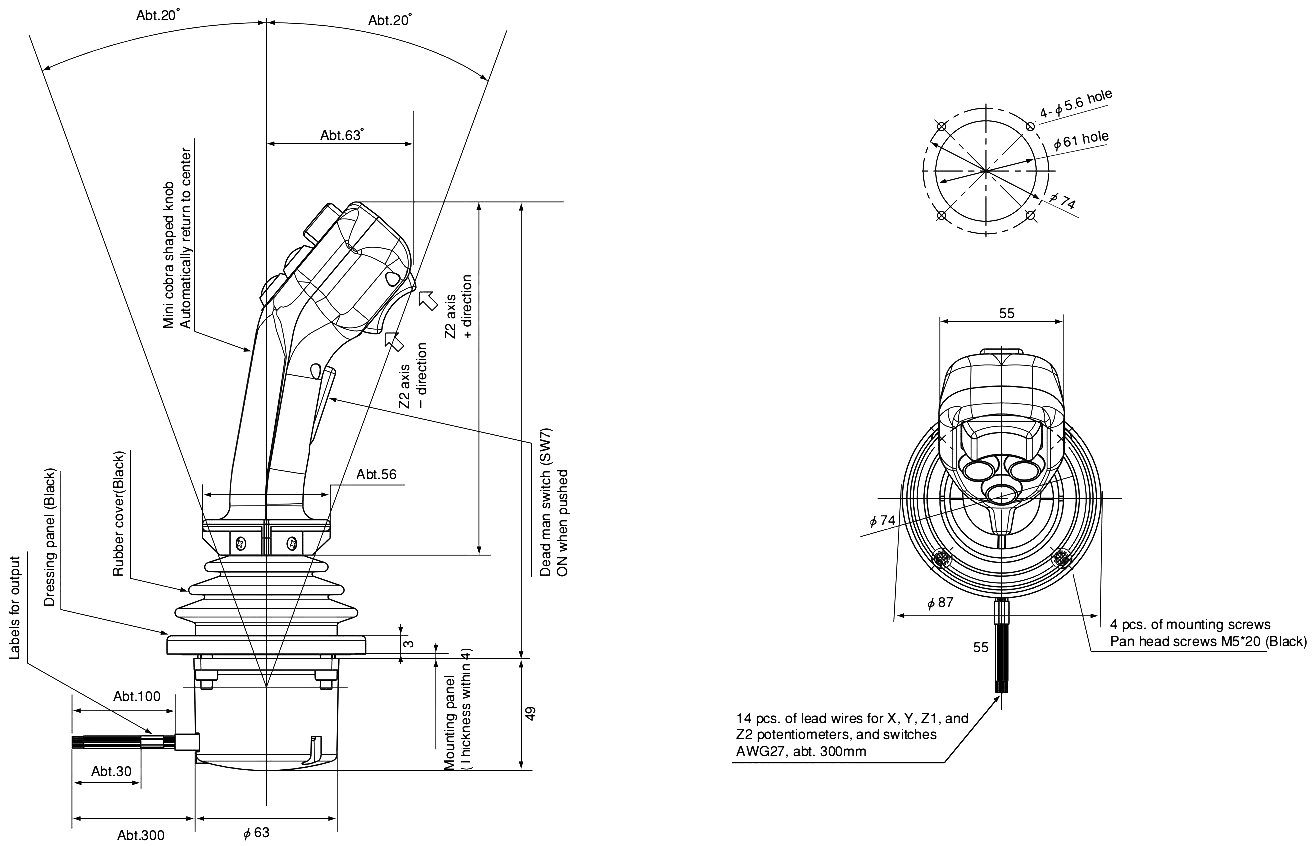

Dimension


Parameter

General Mechanical Specifications

Operating force

Spring return device (Automatically return to center), X & Y directions: Approx. 1.5N~3N, Z direction: Approx. 10mN?m~25mN?m

General Specifications (Potentiometers)

Model No.

SRMP12HYS (Single output), SRMP12HYP (Parallel output), SRMP12HYX (Cross output)

Operating temperature range

-20℃~+60℃

Vibration

10~55Hz 98 m/s²

Shock

294 m/s²

Mechanical life expectancy

Approx. 5,000,000 operations

Mass

Single output type: Approx. 25g, Dual output type: Approx. 30g

Applied voltage

5.V.D.C±10%

Effective output

0.5V~4.5V

Electrical rotating angle

Approx. ±15°(Approx.30°)

Independent linearity tolerance

±3%FS

Load resistance

>10KΩ

Dielectric strength

1 minute at A. C. 500V

Insulation resistance Over 1,000MΩ at D. C. 500V

>1000MΩ(500V.D.C)

EMS durability

100V/m (80MHz~1GHz 1kHz sine-wave 80%AM modulation)

ESD durability

±8kV contact ±15kV aerial discharge (Based on IEC61000-4-2)

General Specifications (Button switch)

Model

No. 59-111 (Black) Manufactured by ITW Switches

Operating characteristics

Momentary type (SW-ON when pushed )

Rating

50V.D.C,0.1A

Dielectric strength

1 minute at A. C. 1,000V

Insulation resistance

>1000MΩ(500V.D.C)

Mechanical life expectancy

Max 500,000 operations

General Specifications (Dead Man)

Model No.

SPVQ810100 Manufactured by ALPS

Operating characteristics

Momentary type (SW-ON when pushed)

Rating

12V.D.C,0.1A

Dielectric strength

1 minute at A. C. 500V

Insulation resistance

>100MΩ(500V.D.C)

Mechanical life expectancy

Max. 300,000 operations
