Sibo has focused on potentiometers and sensors for 30 years.

JH50
JH50

JH50

Magnetic-type Joysticks

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Hall effect joystick

  • Firm and reliable structure

  • Various output signals

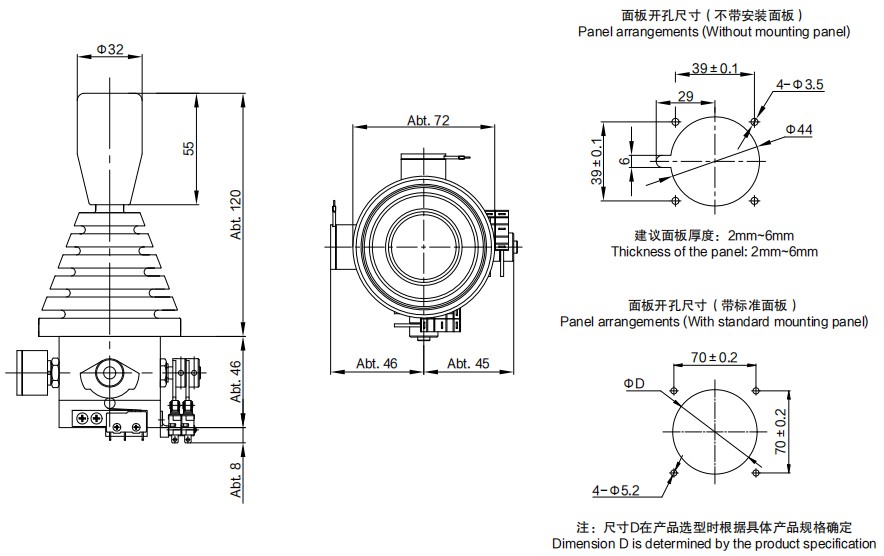

Dimension


Parameter

General Specifications

Operating angle

Approx. ±32° Omni-directional

Operating force(note)

Approx. 3.5N~10N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature

-20℃~+70℃

Storage temperature

-20℃~+70℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx. 460g

Protection degree

IP65(Above panel)

Electrical Specifications (Hall Effect Potentiometer)

Input voltage

5V±10% ;9~30V;15~30V;15~30V

Output signal

0~100%Vcc;0~5V;0~10V;4~20mA

Current consumption (no-load)

<16mA;<25mA;<25mA;<35mA

Load resistance

>100KΩ;>100KΩ;>100KΩ;<600Ω

Output deviation at both ends

<1%.Vcc;<50mV;<50mV;<0.1mA

Independent linearity tolerance

±2%

Resolution

4096 (12 bits)

Dielectric strength

1min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m(80MHz~1GHz,1KHz 80%)EN61000-4-3:2006+A1:2010

Electrical Specifications (Switch)

Electrical specifications (switch)

Push button switch;Microswitch

Rating

48V.D.C. / 0.1A;125V.A.C. / 5A

Electrical life expectancy

1,000,000;10,000

Mechanical life expectancy

- ;10,000,000

Insulation resistance

>1000MΩ (500V.D.C.);>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.);1min (1000V.A.C.)

Electrical Specifications (Signal Converter: Bus Signal)

Models

S4803P-CAN;S4803P-RS485

Input voltage

8~32V.D.C.;8~32V.D.C.

Communication interface

CANbus;RS485

Communication protocol

CANopen;Modbus RTU

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Special Specifications Available

Special analog signals

10V applied, 0~10V output;3.3V applied, 0~5V output;Dual analog signal and PWM

Other output signals

SSI, USB, wireless conmunication(LoRa), other digital signal, bus signal, etc.

Special knob

Special lever length, customized knob, with push button switch (with light is optional), C106, C118

Other mechanical specifications

Special operating force, mid position self-locking function, with spring return device for single side

Other special specifications

With customer-specific connectors, With protection module
