Sibo has focused on potentiometers and sensors for 30 years.

18FLPC
18FLPC

18FLPC

Linear Conductive Plastic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Linear Potentiometers/Linear Sensors

  • Conductive Plastic

  • With front and rear extended shaft

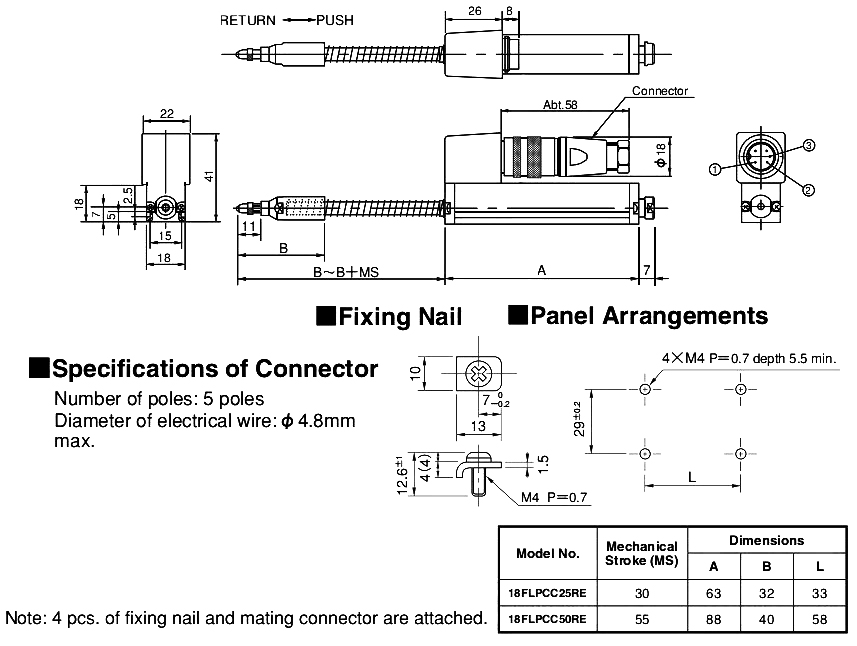

Dimension


Parameter

General Specifications (18FLPCC25RE)

Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±10%(K)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.2%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.5W

Electrical Stroke

25±1mm

Mechanical Stroke (MS)

Approx. 30mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<3N(300gf)

With Spring Return Device

Fitted (Standard)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 100g

General Specifications (18FLPCC50RE)

Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±10%(K)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.1%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.75W

Electrical Stroke

50±1mm

Mechanical Stroke (MS)

Approx. 55mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<3N(300gf)

With Spring Return Device

Fitted (Standard)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 150g

Special Specifications Available

Special stroke

Stroke 75mm (S18FLPCC75), stroke 100mm (S18 FLPCC 100), stroke 150mm (S18FLPCC150), stroke 200mm (S18 FLPCC 200)

Special structure

Sealed type (IP54, The length of "A" is extend ed by abt. 12mm.)

With spring return device

Available 75mm & 100mm stroke. Friction is

With a cardan joint

approx. 3N [300gf]. Spring return device is mounted on the outer shaft.

Extra Tap

Without spring return device

With leadwire terminals

Available up to 1 tap and only on the version with a connector.
