Sibo has focused on potentiometers and sensors for 30 years.

8FLP10A
8FLP10A

8FLP10A

Linear Conductive Plastic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Linear Potentiometers/Linear Sensors

  • Conductive Plastic

  • With front and rear exteded shaft

  • Low-cost Item

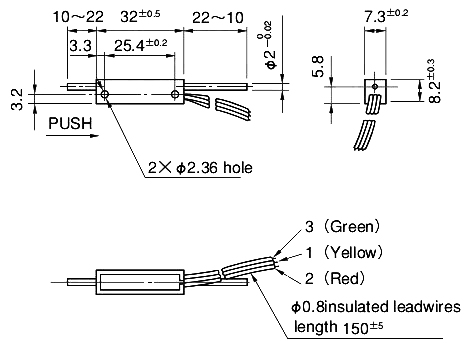

Dimension


Parameter

General Specifications

Standard Resistance Values

1k, 2k, 5k, 10k, 20k (Ω)

Max. Practical Resistance Value

50KΩ

Total Resistance Tolerance

Standard Class ±15% (L), Precision Class ±10% (K)

Independent Linearity Tolerance

Standard Class ±2.0%, Precision Class ±1.0%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.2W

Electrical Stroke

11±0.5mm

Mechanical Stroke

About 12mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 500V.A.C.

Friction

<0.3N(30gf)

Stopper Strength

Approx. 10N (1kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 5g

Special Specifications Available

Special shaft type

Special machining on the shaft

Special electrical stroke

8mm, 12.7mm

Spring return device incorporated

Friction is approx. 3N [300gf]
