Sibo has focused on potentiometers and sensors for 30 years.

CL25A (Long stroke)
CL25A (Long stroke)

CL25A (Long stroke)

Linear Conductive Plastic POT.

瀏覽量: Time: 2023-01-29

    Characteristics:

  • Conductive plastic

  • With cable

  • With front extended shaft

  • Resolution: Essentially infinite

  • Optional voltage/current signal conversion module

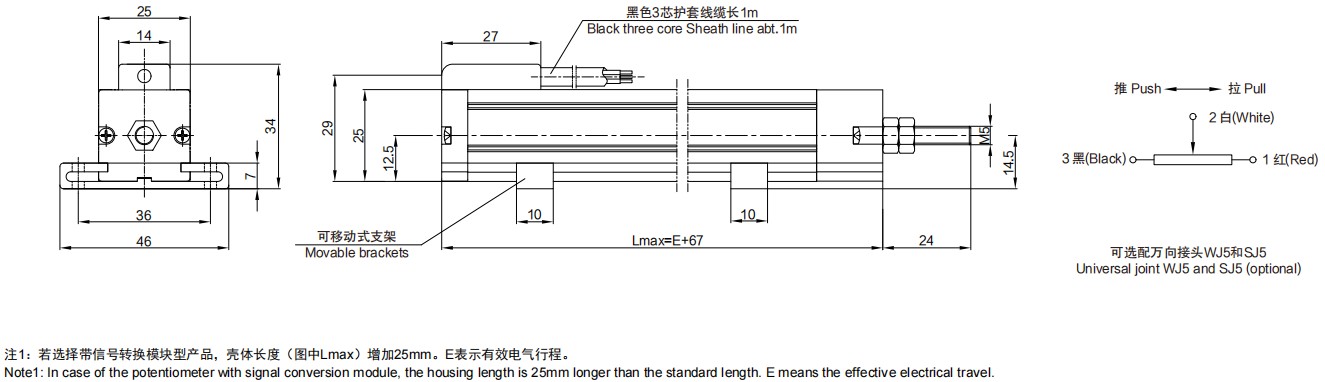

Dimension


Parameter

General Mechanical Specifications

Mechanical stroke

E+6mm±0.5mm

Protection degree

IP40

Operating force

≤2.5N

Life expectancy

20,000,000

Mass

Approx.115g (50mm);Approx.160g (100mm);Approx. 205g (150mm);The mass of products with different electrical strokes can refer to the calculation formula M=0.9×E+70g

Speed (m/s)

Max 1m/s

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Wiper material

Precious metal multi-finger wiper

Environmental Specifications

Operating temperature range

-55℃~+125℃

Storage temperature range

-55℃~+125℃

Shock

50G,11ms, Half sine

Vibration

15G,10~2000Hz

General Electrical Specifications

Theoretical electrical stroke

10mm; 15mm; 25mm~300mm (increase every 25mm)

Actual electrical stroke

T=E±1.5mm

Standard resistance

1K,2K,5K,10K

Resistance tolerance

Standard±15%; Precision±10%

Independent linearity tolerance

Standard±0.5%; Precision±0.1%; S-Precision±0.05%

Max.power rating

0.02W/cm(70℃), 0W(125℃)

Wiper current

μA~1mA(Max.2mA))

Repeatability of tolerance

≤0.01%

Load resistance

≥1000xRt

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

750V.A.C RMS 50Hz

Signal Conversion Module

Electrical stroke

Same as potentiometer type

Rated input voltage

15~30V

Signal conversion module type

Current type I1, Voltage type V1, Voltage type V2

Output signal type

4~20mA(I1)、0~5V(V1)、0~10V(V2)

Load resistance

0~350Ω(I1)、≥5KΩ(V1、V2)

Special Specifications Available

With spring return device

The following strokes can realize the spring return incorporated: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm;The following strokes can realize the spring return outside-mounted: 10mm (including 10mm)~275mm

Special electrical travel

Special electrical travel

Optional accessories

Universal Joint WJ5,SJ5
