Sibo has focused on potentiometers and sensors for 30 years.

EI22A-E1
EI22A-E1

EI22A-E1

Incremental Encoders

瀏覽量: Time: 2024-04-25

    Characteristics:

  • Magnetic encoders

  • Any PPR up to 4096 available

  • Economy version

  • Bushing mount

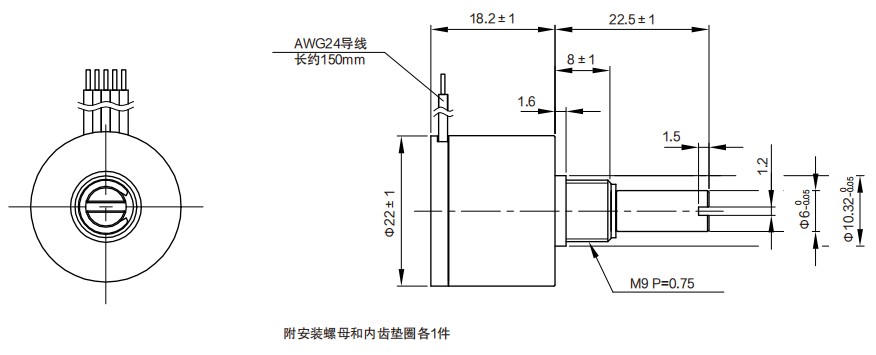

Dimension


Parameter

General Specifications

Protection degree

IP54

Operating torque

<2mN·m

Max.speed

<1500rpm

Life expectancy

50,000,000

Mass

Approx. 20g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃~+125℃

Storage temperature range

-30℃~+125℃

General Electrical Specifications

Standard model

EI22A-E1

Applied voltage

3.3V-5V

Output high level

>VDD-0.5V

Output low level

<0.5V

Output form

Push-pull output

Number of output pulse

4096 ppr max.

Mechanical angle

360° (Endless)

Output propagation delay

<10μs

Current consumption (no-load)

<28mA

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

EMS durability

10V/m (80MHz~1GHz 1kHz sine-wave 80%AM modulation)

ESD durability

±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)

Special Specifications Available

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、flatted etc.)
