Sibo has focused on potentiometers and sensors for 30 years.

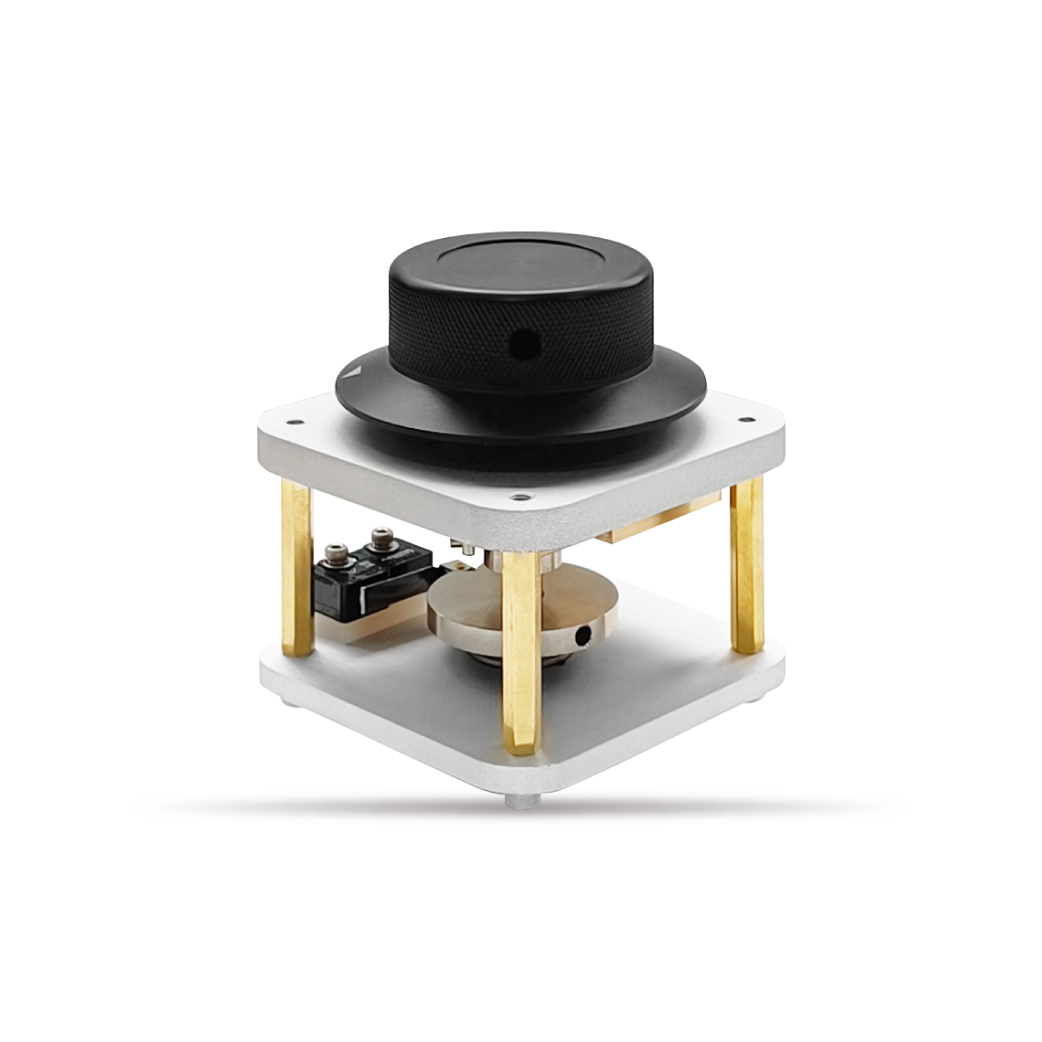

HW62H
HW62H

HW62H

Handwheel Controllers

瀏覽量: Time: 2023-01-29

    Characteristics:

  • Compact product

  • Optional detent in the middle position

  • Several optional operating angle

  • Optional switch signal

Dimension


Parameter

General Mechanical Specifications

Operating angle

±50°、±135°、±160°

Operating force

Abt.5N~15N

Stoper Strength

120N

Mechanical life expectancy

10,000,000

Mass

Approx.350g

Operating temperature range

-30℃~+85℃

Protection degree

IP65(above panel)

General Electrical Specifications

Standard model

HW62H-0505-270-2(For more input voltage/output signal such as 2410、2405、2442, please check our catalog.)

Contactless potentiometer model

WLH22E

Applied voltage

5V±10%

Output signal

0~100%Vcc

Load resistance

>100KΩ

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%.VCC

Electrical angle

270°

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

2442

15~30V / 4~20mA

Special Specifications Available

Detent

0~3pcs of detent is available according to customers' request, such as center position detent , end position detent, etc.

Special dial

Dial can be customized according to customer request.

Mark on dial

The mark on dial could be printed according to customer's request by laser printer. The indicated location of the mark can be specified according to customer requirements.

Special mechanical structure

We can provide middle position self-locking products.
