Sibo has focused on potentiometers and sensors for 30 years.

HW62W
HW62W

HW62W

Handwheel Controllers

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Compact product

  • Optional detent in the middle position

  • Several optional operating angle

  • Optional switch signal

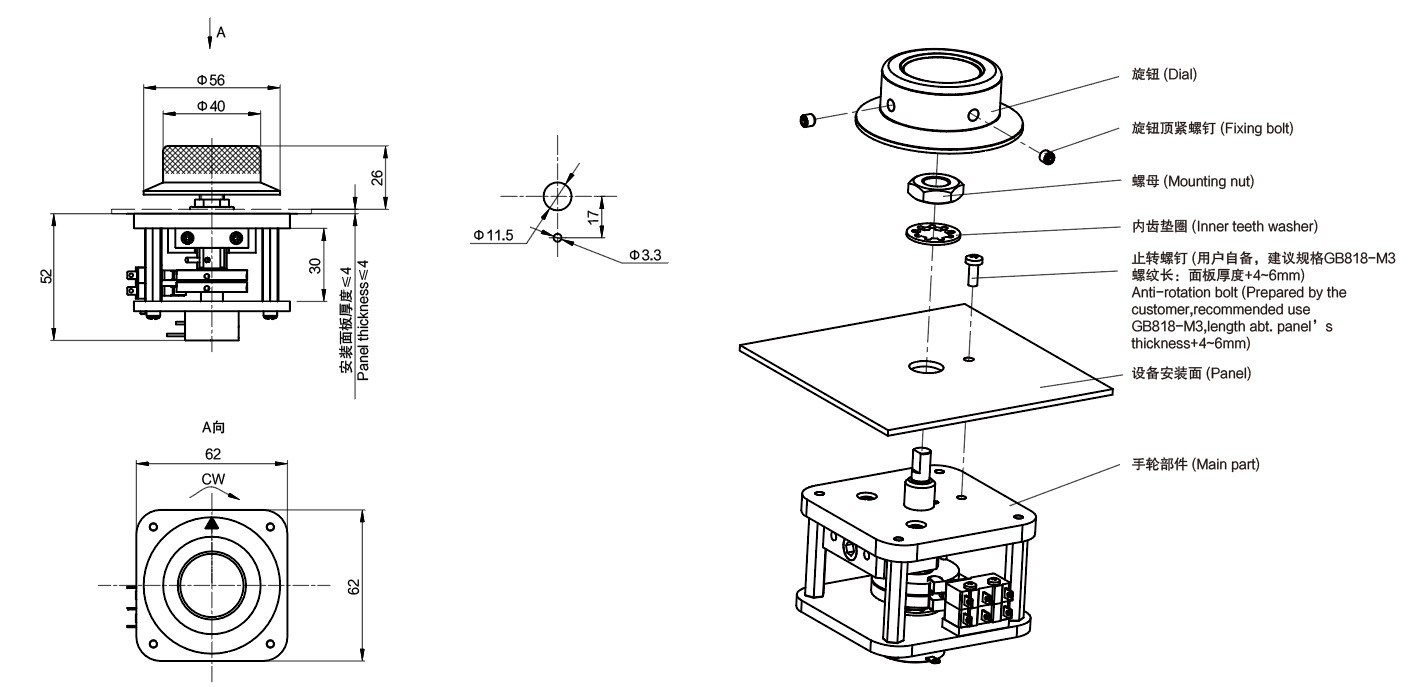

Dimension


Parameter

General Mechanical Specifications

Operating angle

±50°、±135°、±160°

Operating force

Abt.5N~15N

Stoper Strength

120N

Mechanical life expectancy

10,000,000

Mass

Approx.350g

Operating temperature range

-30℃~+85℃

Protection degree

IP65(above panel)

General Electrical Specifications(With SAKAE Precision Potentiometer)

Standard model

HW62W-10K-100-2

Potentiometer model

SFCP22E

Independent linearity tolerance

±3%

Standard resistance value

10K±15%

Effective electrical angle

100°±5°

Power rating

0.2W

Resolution

Essentially infinite

Special Specifications Available

Detent

0~3pcs of detent is available according to customers' request, such as center position detent , end position detent, etc.

Special dial

Dial can be customized according to customer request.

Mark on dial

The mark on dial could be printed according to customer's request by laser printer. The indicated location of the mark can be specified according to customer requirements.

Special mechanical structure

We can provide middle position self-locking products.
