Sibo has focused on potentiometers and sensors for 30 years.

XL50SH
XL50SH

XL50SH

Draw Wire Sensor

瀏覽量: Time: 2023-01-29

    Characteristics:

  • Draw-wire position sensor

  • Economy version

  • Measuring range:100~1500mm

  • Output signal:0~100%Vcc、0~10V、4~20mA

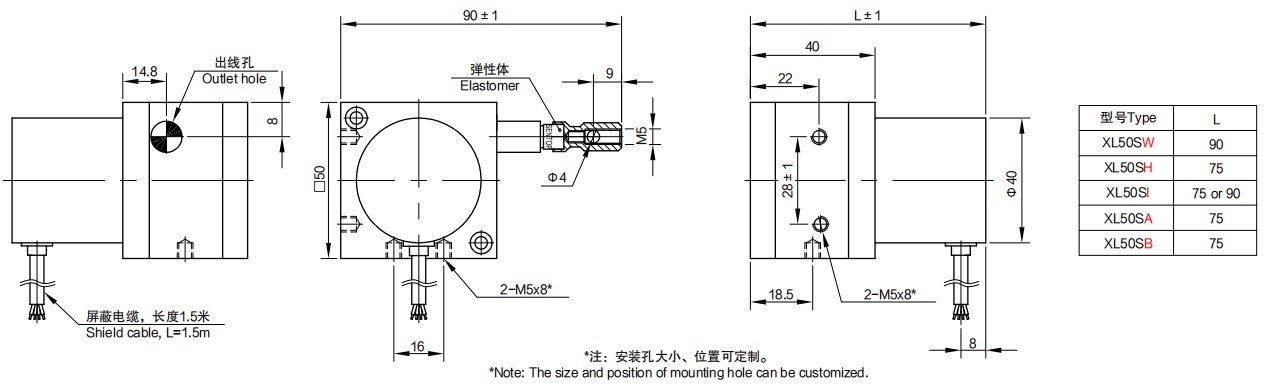

Dimension


Parameter

General Mechanical Specifications

Measure range

Max. 1500mm

Protection degree

IP54(electrical parts)

Force

2N~5.5N

Mechanical Life expectancy

2,000,000

Mass

Approx.350g

Housing material

Anodized aluminium alloy

Draw wire

0.6mm coated polyamid stainless steel

Max. reciprocating speed

300mm/s

The length of the cable

1.5m

Environmental Specifications

Operating temperature range

-30℃~+85℃

Storage temperature range

-30℃~+85℃

Shock

10G, 10Hz~1.5kHz

Vibration

50G, 10ms

General Electrical Specifications

Applied voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<80mA

Output deviation at both ends

<1%·VCC

Load resistance

>100KΩ

Linearity tolerance

0.3%FS

Repeatability accuracy

0.03%

Resolution

0.2mm (Standard)、0.025mm (Optional)

Special Specifications Available

Special specifications

Available for multi-segment output, special cables, high protection degree, etc.
