Sibo has focused on potentiometers and sensors for 30 years.

MG20-22B
MG20-22B

MG20-22B

Analog-Readout Dials

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Analog-Readout

  • Low-cost Item

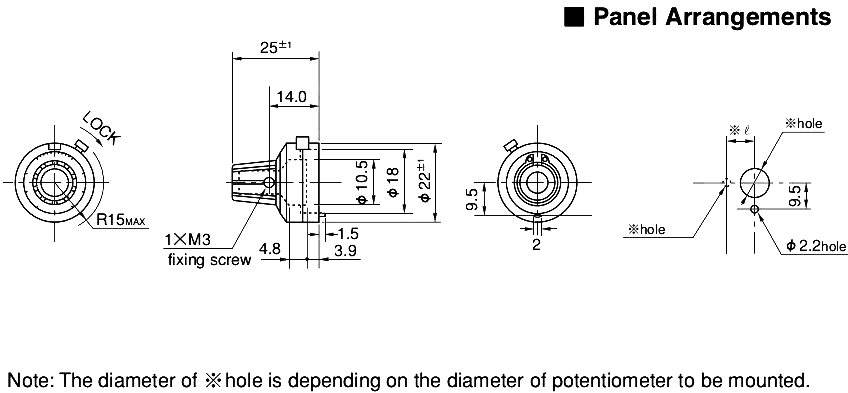

Dimension


Parameter

General Specifications

Model No

MG20-22B

Number of Turns-Counting.

20

Matching Shaft Dia. (mm)

Standard 6, Special 3,3.175,4,6.35

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 10HP, 12HP, 20HP, 22HP, 25HP, 46HD, 12HHP, 20HHP, 22HHP, 12HPC

Lock Device

Yes

Operating Temperature Range

-30℃~+60℃

Mass

Approx.5g

Special Specifications Available

Special case

Outer case and knob in different color (Black, Gray, etc.)

Special divisions

100 divisions in inner graduation (Possible read out of 1/1,000 in 10-turn pot.)
