Sibo has focused on potentiometers and sensors for 30 years.

CP22TE
CP22TE

CP22TE

1-turn Wire-wound POT.

瀏覽量: Time: 2023-02-15

    Characteristics:

  • Single turn

  • Wirewound

  • Bushingmount

  • Low-cost Item

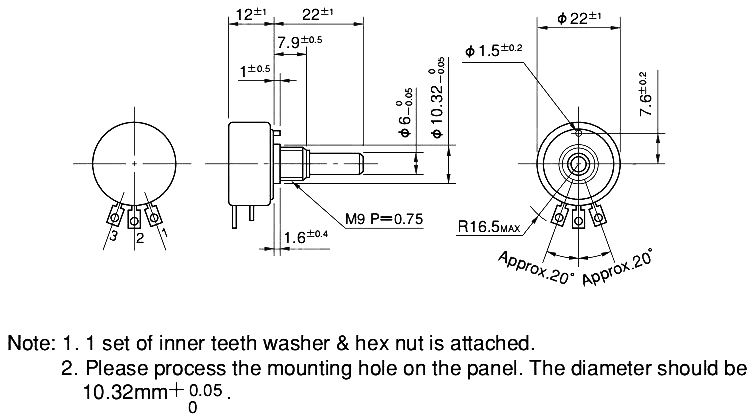

Dimension


Parameter

一般規(guī)格

Standard Resistance Range

50,100,200,500,1K,2K,5K,10KΩ

Max. Practical Resistance Value

20KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.25% (±0.35% in case of within 1kΩ)

Power Rating

0.5W

Noise

<100ΩE.N.R.

Electrical Travel

320°±5°

Mechanical Travel

320°(+10°/0°),with stopper

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<5mN·m(50gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.20g

Stopper Strength

Approx.0.6N·m(6kgf·cm)

Residual Resistance

<3% (≤1kΩ)、<1%(>1kΩ)

Special Specifications Available

Special resistance value

Lower resistance values (10Ω, 20Ω)

Special shaft type

Shaft with front and rear extension (Rear shaft with 6mm dia. and 20mm length), shaft dia. (φ6.35mm)&bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra tap (Available up to 1 tap)

Special gangs

Multi-ganged (Available up to 10 gangs)

Special models

For continuous rotating product (mechanical stroke 360 °, electrical stroke 355 °), the model is CP22E.
