Sibo has focused on potentiometers and sensors for 30 years.

CP50
CP50

CP50

1-turn Wire-wound POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Single turn

  • Wirewound

  • Servomount

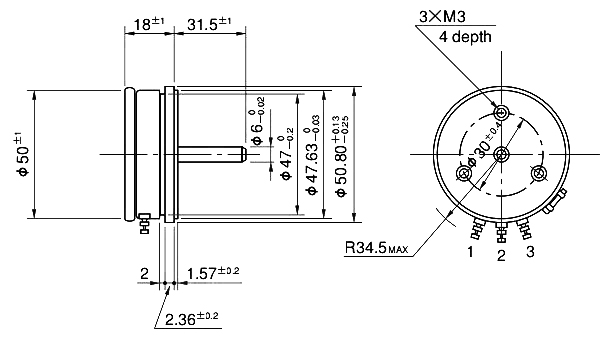

Dimension


Parameter

General Specifications

Standard Resistance Range

50Ω~20KΩ

Max. Practical Resistance Value

50KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.1%, (±0.2% in case of within 2kΩ )

Power Rating

1.5W

Noise

<100ΩE.N.R.

Electrical Travel

355°±3°

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<5mN·m(50gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.75g

Special Specifications Available

Special resistance value

Lower resistance values (10Ω , 20Ω )

Special shaft type

Shaft with front and rear extension (Rear shaft with 6mm dia. and 15mm length), shaft dia. (φ 6.35mm) with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra taps (Available up to 10 taps)

Spring return device incorporated

Spring return device incorporated (Automatically returning to the zero position)

With stopper

Rotating angle is 330°and stopper strength is 0.9N?m [9kgf?cm]

Special mounting

Bushingmount type

Special gangs

Multi-ganged (Available up to 7 gangs. Housing length is extended by 12mm per 1 gang)
