Sibo has focused on potentiometers and sensors for 30 years.

FSCB22A
FSCB22A

FSCB22A

1-turn Non-linear POT.(SINCOS)

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Conductive Plastic

  • Single turn

  • Servomount

  • Non-linear (SINCOS)

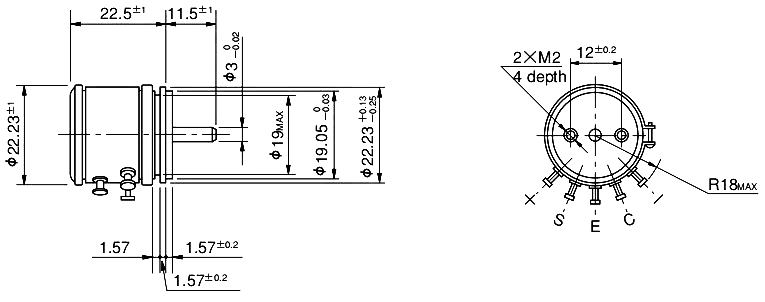

Dimension


Parameter

General Specifications

Standard Resistance Range

1K,2K,5K,10K(Ω)

Special Practical Resistance Values

500,20K,50K(Ω)

Total Resistance Tolerance

Standard Class ±15%(L), Precision Class ±10%(K)

Conformity Tolerance (Peak-Peak)

Standard Class ±2.0%, Precision Class ±1.0%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance

<8%C.R.V.

Power Rating

0.5W

Electrical Travel

360°(Endless)

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<3mN·m(30gf·cm)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 20g

Special Specifications Available

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 10mm length), shaft dia. (φ 3.175mm) with inch dimension, special machining on the shaft

Special gangs

Multi-ganged (Available up to 3 gangs. Housing length is extended by 16mm per 1 gang)

Special type

Oil-filled type
