Sibo has focused on potentiometers and sensors for 30 years.

WDH10
WDH10

WDH10

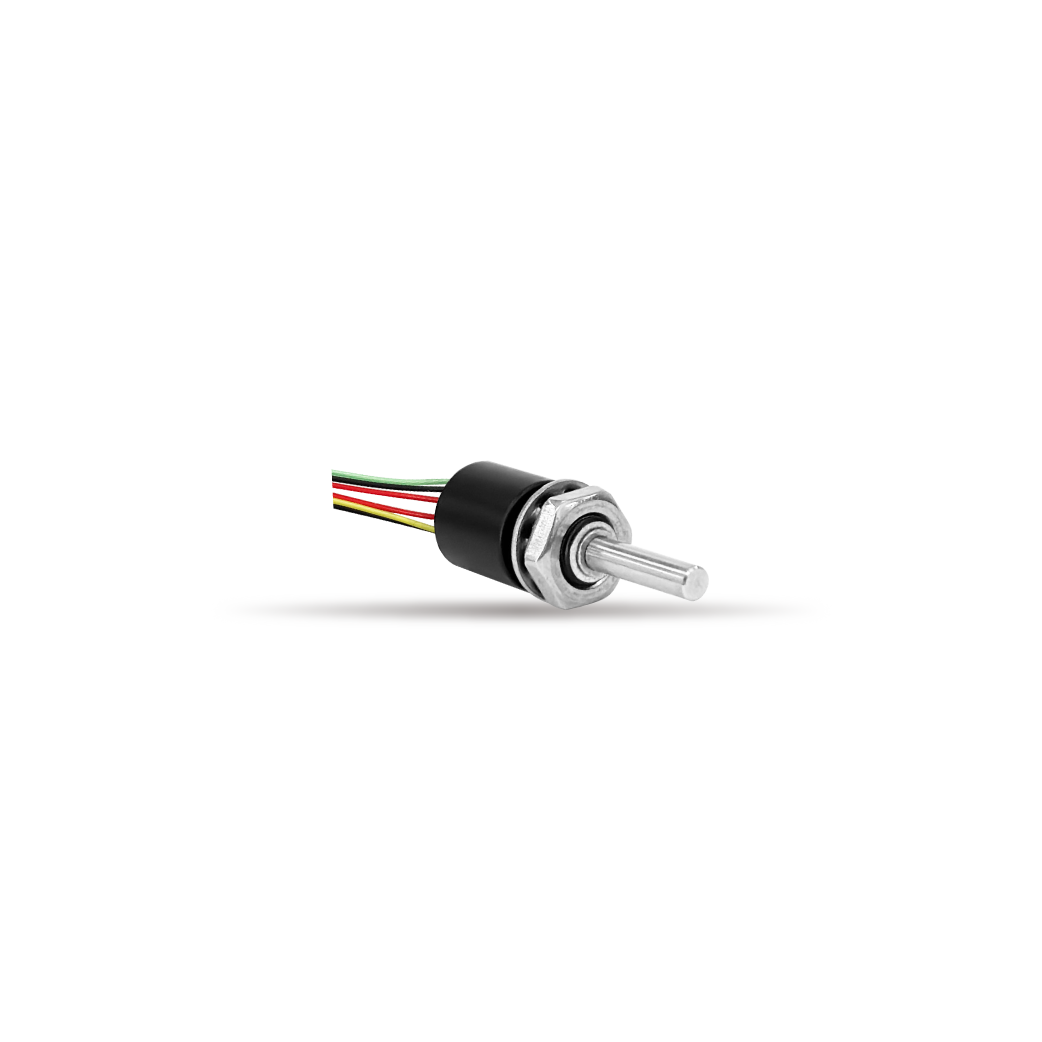

1-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-11-29

    Characteristics:

  • Magnetic rotary sensor

  • Economy version

  • Pocket size (Housing dia.Φ10mm)

  • Dual output optional

  • Bushingmount

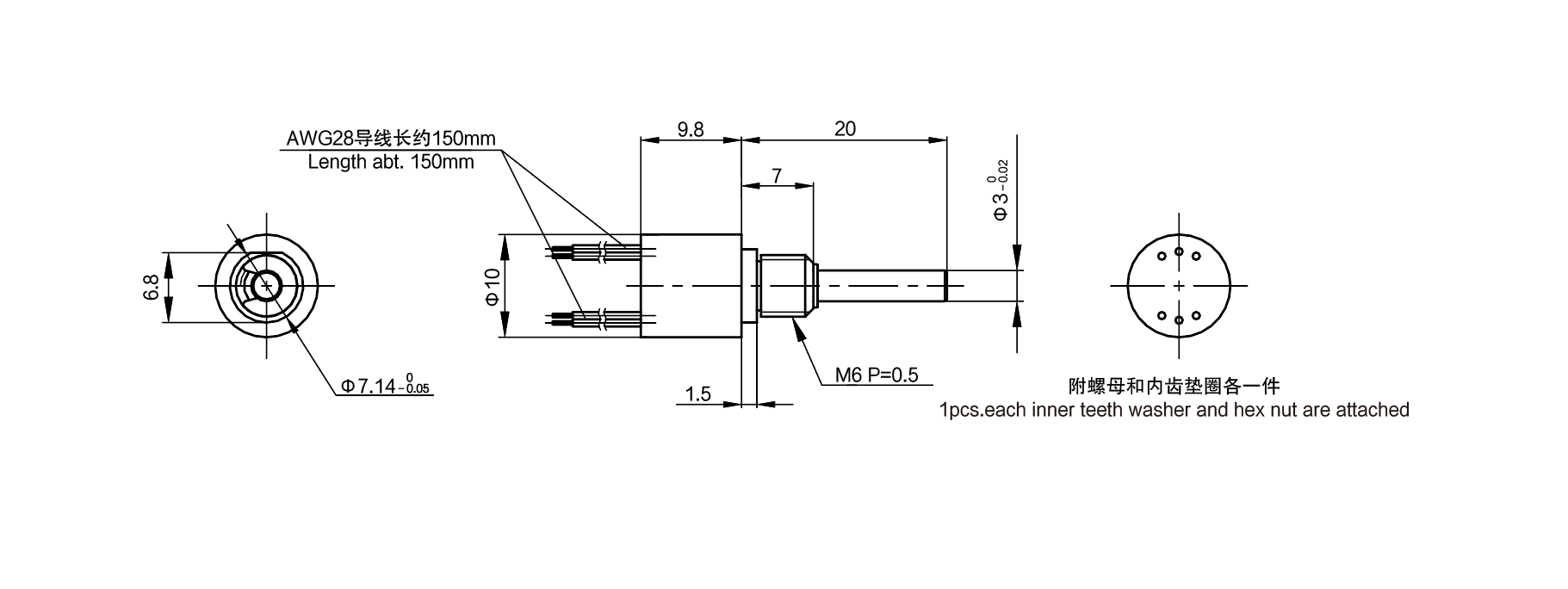

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP65

Operating torque

<2.5mN·m

Life expectancy

20,000,000

Mass

Approx. 7g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃~+125℃

Storage

-30℃~+125℃

temperature range

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

ESD durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

EMS durability

General Electrical Specifications

Standard model

WDH10 0505 X W360

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<13mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Other output signals

PWM

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、flatted etc.)
