Sibo has focused on potentiometers and sensors for 30 years.

HSM30
HSM30

HSM30

1-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor (Hall effect)

  • Single turn

  • Bushingmount

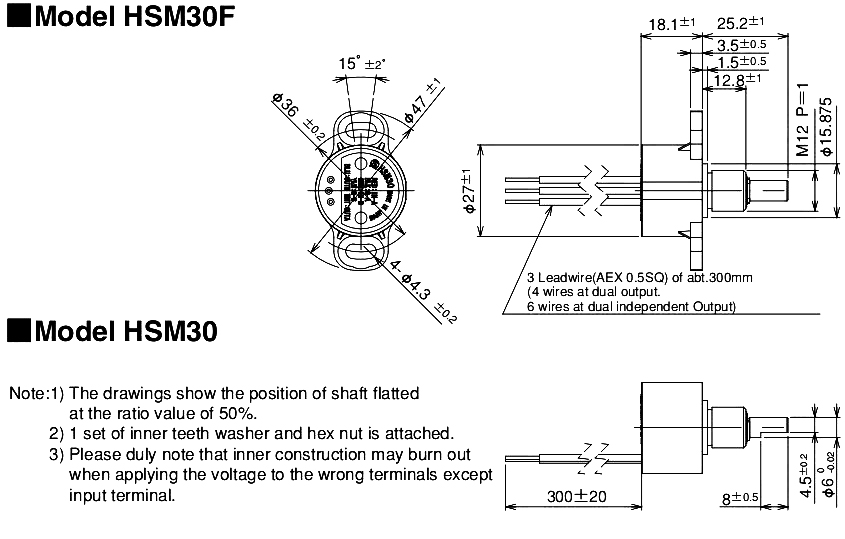

Dimension


Parameter

General Specifications

Current Consumption

Single output: Max. 16mA, Dual output: Max. 32mA

Independent Linearity Tolerance

±0.5%FS(FS=360°)

Mechanical Rotating Angle

360°(Endless)

Effective Electrical Angle

360°(Endless)

Applied Voltage

5V±10%D.C.

Load resistance

>10KΩ

Effective Output

10%±3%~90%±3% Vin

Output Temperature Characteristics

Within ±0.3%Vout/FS

Operating Temperature Range

- 40°C~+120°C

Storage Temperature Range

- 40°C~+120°C

Mass

約45g(HSM30F)

Rotating Torque

<5mN·m(50gf·cm)

Environmental Specifications

Thermal Shock

5 cycles - 50°C~+125°C

Exposure at Low Temperature

24 hours at - 50°C

Exposure at High Temperature

1,000 hours at +125°C

Vibration

10~2000Hz 196m/s² 12 hours

Shock

980m/s2 6ms(18 times)

Rotational Life Expectancy

Approx. 50,000,000

EMS Tolerance

100V/m(80MHz~1GHz 1kHz Sinwave80% Amplitude Modulation)

ESD Tolerance

±8kV contact discharge /±15kV aerial discharge (Based on IEC 61000-4-2)

Special Specifications Available

Special effective electrical angle

90°,180°,270°- arbitrary angles

Special shaft type

Special machining on the shaft

Special output

PWM, cross, parallel, dual independent output

Special applied voltage

12V,24V

Special mode

Low current consumption in slow mode (Within 11mA)
