Sibo has focused on potentiometers and sensors for 30 years.

HSM18E
HSM18E

HSM18E

1-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor (Hall effect)

  • Single turn

  • Bushingmount

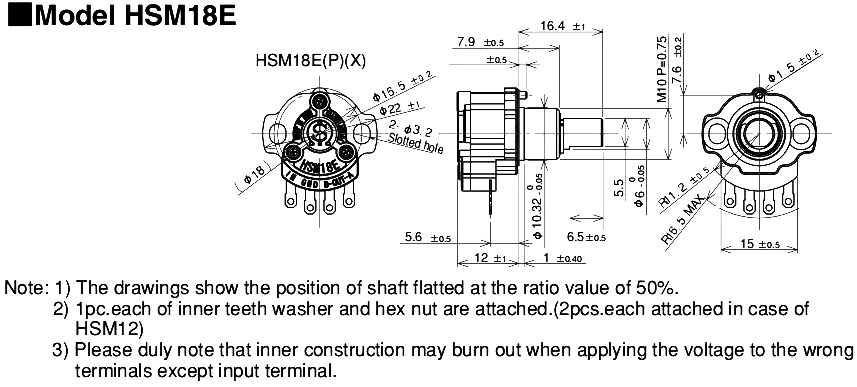

Dimension


Parameter

General Specifications

Current Consumption

Single output: Approx.7mA, Dual output: Approx.14mA

Independent Linearity Tolerance

±1.5%FS(FS=90°)

Mechanical Rotating Angle

360°(Endless)

Effective Electrical Angle

±45°(Endless)

Applied Voltage

5V±10%D.C.

Load resistance

>10KΩ

Effective Output

Approx. 10%~Approx. 90%Vin?FS(FS=90°)

Output Temperature Characteristics

Within ±2.5%Vout/FS

Drift at Center Position

Within ±0.5%Vout/FS

Operating Temperature Range

- 40°C~+105°C

Storage Temperature Range

- 40°C~+105°C

Mass

Approx. 15g

Rotating Torque

<2mN·m(20gf·cm)

Environmental Specifications

Thermal Shock

5 cycles -50°C~+105°C

Exposure at Low Temperature

24 hours at -50°C

Exposure at High Temperature

1,000 hours at +105°C

Vibration

10~2000Hz 196m/s2

Shock

980m/s2 6ms

Rotational Life Expectancy

Approx. 50,000,000

EMS Tolerance

100V/m(80MHz~1GHz 1kHz Sinwave80% Amplitude Modulation)

ESD Tolerance

±8kV contact discharge /±15kV aerial discharge (Based on IEC 61000-4-2)

Special Specifications Available

Special effective electrical angle

Possible to meet with from ± 10°to ± 45°by 5°step, as requested

Special shaft type

Special machining on the shaft, special output (HSM18E & EL are only available - Cross, Parallel)
