Sibo has focused on potentiometers and sensors for 30 years.

WDH15B
WDH15B
WDH15B
WDH15B

WDH15B

1-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor

  • Economy version

  • Small size (Housing dia.Φ15mm)

  • With one couple of precision ball bearings

  • With solder terminals

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP40

Operating torque

<1mN·m

Life expectancy

100,000,000

Mass

Approx.10g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃~+125℃

Storage temperature range

-40℃~+125℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

WDH15B 0505 W360

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special analog signals

PWM

Other output signals

SPI

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、flatted etc.)

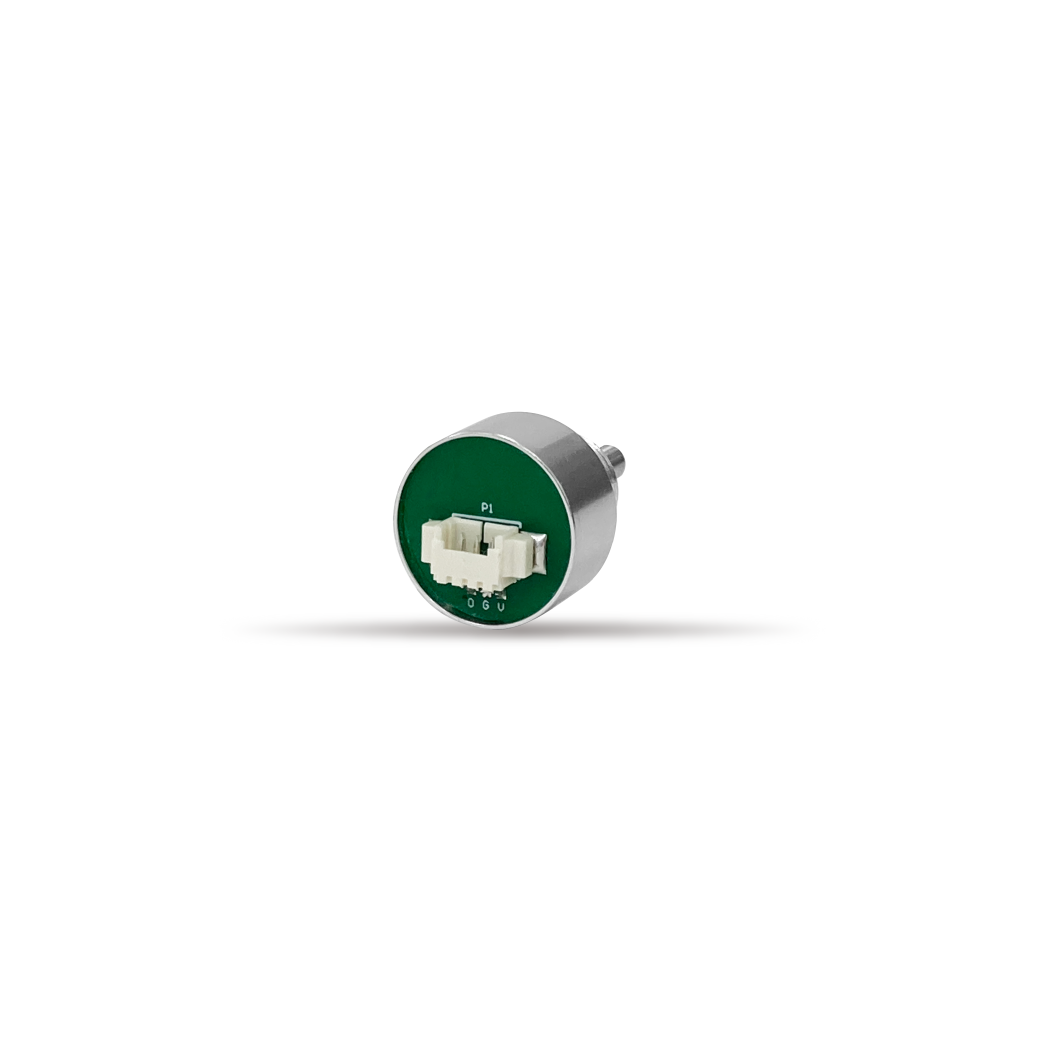

With connectors

With connectors
