WDH12
WDH12
WDH12
WDH12

WDH12

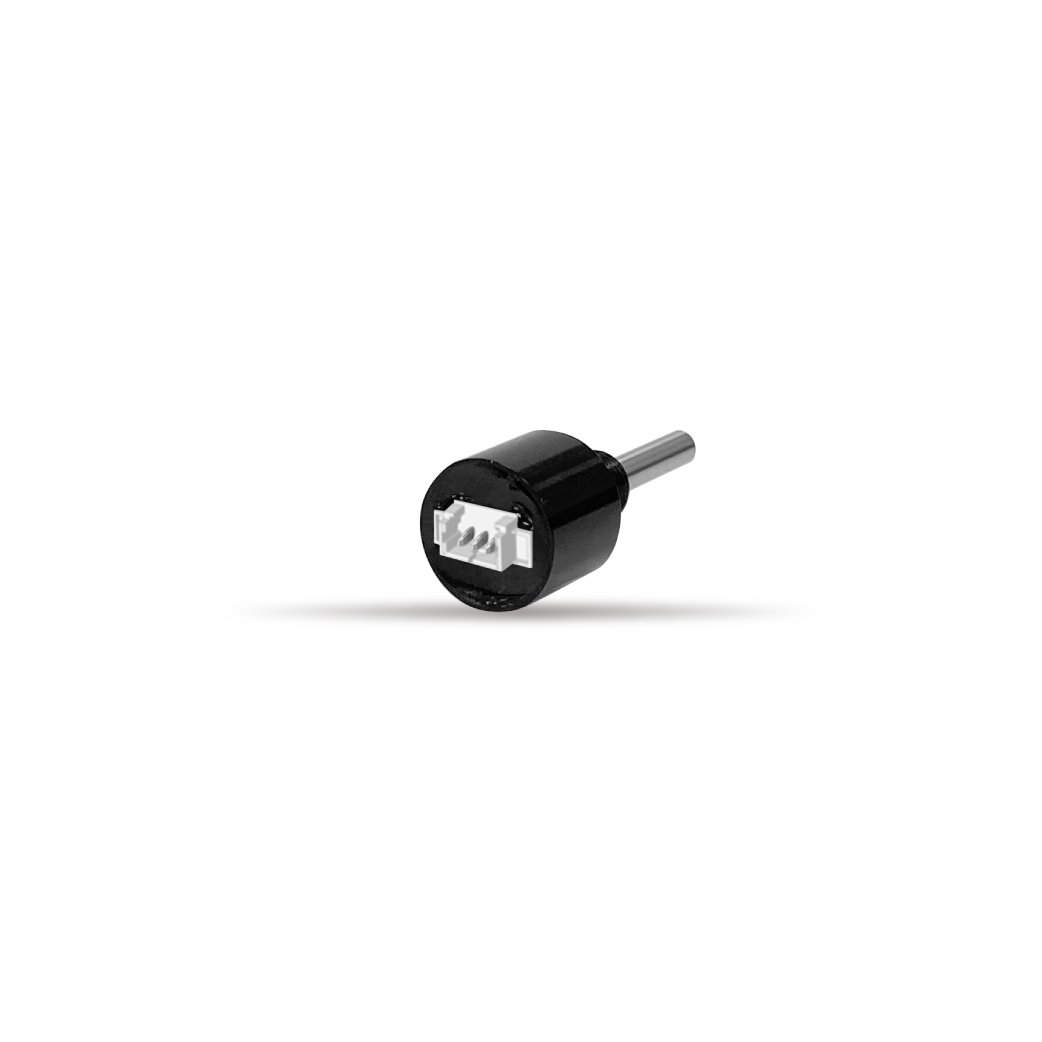

1-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor

  • Economy version

  • Pocket size (Housing dia.Φ12mm)

  • Bushingmount

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP54

Operating torque

<2.5mN·m

Life expectancy

20,000,000

Mass

Approx.4g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃~+125℃

Storage temperature range

-30℃~+125℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

WDH12 0505 W360

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special analog signals

PWM

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、flatted etc.)

With connectors

With connectors
